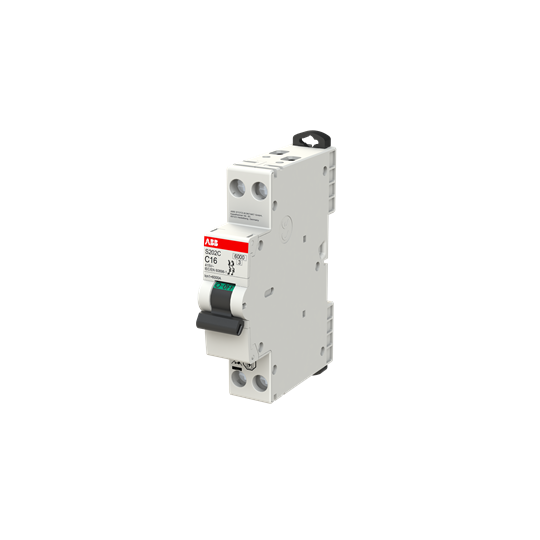

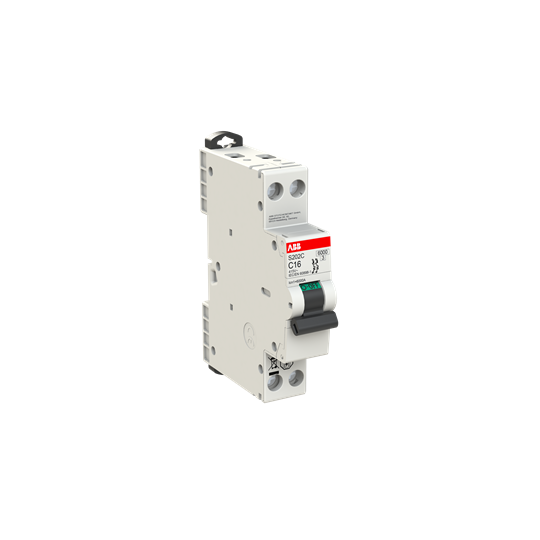

AUTOMAT S202CM-C25 KOMPAKT
Product number
1683285
S202CM, 2pol, 1mod, C-karakteristikk, 25A, 10kA
S200CM serien er en kompaktserie der 1pol og 2pol i kommer i 1 module, 3pol og 4pol i 2 moduler, dette gjør at du sparer mye plass i skapet. Finnes i både 6kA og 10kA (kun 2polt) for å dekke bruksområder fra boliger til industri, inkludert marine- og trekkraftsegmenter. Kombinasjon mulig med hjelpe-/signalkontakt i G2C-serien. Standard: IEC/EN 60898-1
Product details
Technical specifications
Built-in depth70 mm
Release characteristicC
Number of poles (total)2
Number of protected poles2
Rated current25 A
Rated voltage240 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10 kA
Voltage typeAC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10 kA
Frequency50 - 60 Hz
Power loss6.2 W
Current limiting class3
Flush-mounted installationno
Product codes
SAPDCT446
El number1683285
Product number1683285
GTIN/EAN4053546039467
Manufacturer part number2CDS272280R0254
Vendor material number2CDS272280R0254
Basic information
Package measurements (L x W x H)86 x 18 x 70 mm
Package volume0.108 l
Package weight0.16 kg
Base uniteach
Package units1 / 12
Usage quantity–
UNSPSC32000000
BrandABB
Country of OriginPL Poland
Customs tariff code85362000
