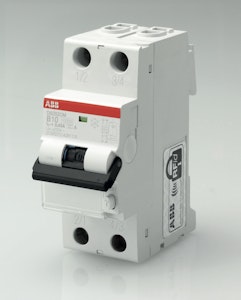

JF.AUT DS202C M C6 A-30MA 2CSR272140R1064
Product number
1686951
JF.AUT DS202C M C6 A-30mA
JF.AUT DS202C M C6 A-30mA JF.AUT DS202C M C6 A-30mA
Product codes
Basic information
Technical specifications
Documents (4)
| SAP | GBW152 |
|---|---|
| PLC | 1686951 |
| STK | 1686951 |
| GTIN/EAN | 8012542118855 |
| Manufacturer part number | 2CSR272140R1064 |
| Vendor material number | 2CSR272140R1064 |
| Package measurements (L x W x H) | 67 x 36 x 83 mm |
| Package volume | 0.2 l |
| Package weight | 0.239 kg |
| Package units | 1 |
| Usage quantity | 1 |
| UNSPSC | 39121614 |
| Brand | ABB |
| Ambient temperature during operating | -25 ... 55 °C |
| Anti-nuisance tripping version | false |
| Built-in depth | 69 mm |
| Concurrently switching neutral conductor | true |
| Connectable conductor cross section multi-wired | 25 ... 25 mm² |
| Connectable conductor cross section solid-core | 25 ... 25 mm² |
| Current limiting class | 3 |
| Degree of protection (IP) | IP2X |
| Disconnection characteristic | Undelayed |
| Frequency | 50/60 Hz |
| Leakage current type | A |
| Number of poles (total) | 2 |
| Number of protected poles | 2 |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Rated current | 6 A |
| Rated fault current | 0.03 A |
| Rated impulse withstand voltage Uimp | 4 kV |
| Rated insulation voltage Ui | 500 V |
| Rated short-circuit breaking capacity Icn according to EN 61009-1 | 10 kA |
