efa elektro Fa bam01 alarmkont.1nc 432000 ge

FA BAM01 ALARMKONT.1NC 432000 GE

Product number
4343533

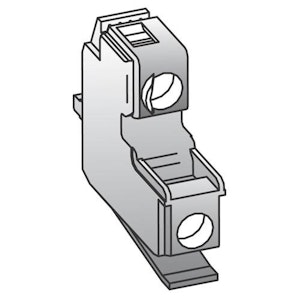

FE/FG-Auxiliary Contact Alarm contact Mech 1NC
Auxiliary contacts Auxiliary contact blocks are conveniently fitted into an auxiliary-device compartment, accessible by removing the breaker cover. This fully insulated compartment has several pouches, a number of which are reserved for contact blocks. To allow for a logical and traceable schematics each contact block has a pre-defined position within the auxiliary device compartment indicated by a symbol printed both on the breaker case and on the auxiliary device itself. External wiring can be brought into the accessory compartment through - specifically designed and positioned - break-out openings in the breaker lid or can go through channels in the breaker rear. Once this is done the wiring can be stripped an easily connected to the box terminals on the internal accessories. These terminals are designed to connect wiring up to 2,5 mm². To identify the correct mounting position within the accessory compartment symbols are moulded into the breaker and contact housing. For auxiliary switches suited for mounting on the right and on the left. For Bell alarm switches; Mechanism operated types and Trip unit operated types.
Product codes
Basic information
Technical specifications
Documents (0)
SAPGBU674
PLC4343533
STK4343533
GTIN/EAN5050096320006
Vendor material number4343533
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0 l
Package weight0.1 kg
Package units1
Usage quantity1
UNSPSC32000000
BrandEFA ELEKTRO
ModelIntegrable
Mounting methodFront fastening
Number of contacts as change-over contact0
Number of contacts as normally closed contact1
Number of contacts as normally open contact0
Rated operation current Ie at AC-15, 230 V3 A
Type of electric connectionScrew connection
No documents available
