FK R DØRHÅNDTAK 436519 GE

Product number
4340703

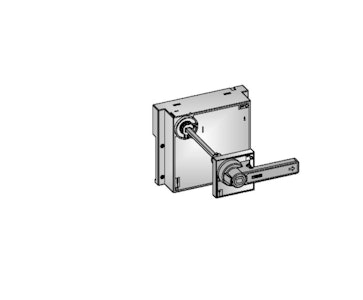

FK-Rotary Handle Door mounted Standard
The Record Plus rotary handle is specifically designed to allow the user to change the linear motion of the breaker to a rotation over a 90 degree angle. This can be accomplished by simply adding an adaption box to the breaker front. The design is universal for the whole breaker line and has the "OFF" position placed at 3 o'clock and the "ON" position at 6 o'clock. The third breaker position "TRIP" is located between the "ON" and the "OFF" position. The design has room for two early closing and late opening contact blocks that, in order to save installation time, are delivered pre-mounted and pre-wired with a specific rotary-handle device. Each Record Plus rotary handle is designed to allow the user to place one to three 5 to 8 mm padlocks to lock the breaker in the "OFF" position.
Product codes
Basic information
Technical specifications
Documents (0)
SAPGBU629
PLC4340703
STK4340703
GTIN/EAN5050096365199
Vendor material number4340703
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0 l
Package weight0.1 kg
Package units1
Usage quantity1
UNSPSC32000000
BrandEFA ELEKTRO
Lockabletrue
With axis extensiontrue
With door interlocktrue
With handle red/yellowfalse
No documents available
