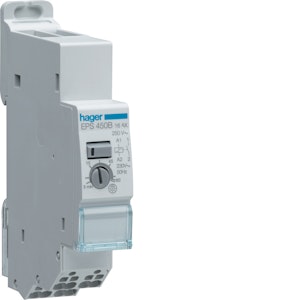

FJERNBRYTER M TID 5M-1T 230V EPS450B HAGER
Product number
1480187
Fjernbr.m.tidsfors 5-60m 230V 16A
FJERNBRYTER MED TIDSFUNKSJON 5min.-1t. 230V 16A 1 STK NO LYDLØST RELE Norm: EN60669-1, EN60669-2-1, EN60669-2-2, EN60669-2-3, Driftspenning 230V AC +/- 10 % 50/60Hz, Normal Åpen kontakt µ16A – 250V AC1, Tidsfunkjon 5 min. - 1 t., WAGO QuickConnect klemmer
Product codes
Basic information
Technical specifications
Documents (1)
| SAP | GBU898 |
|---|---|
| PLC | 1480187 |
| STK | 1480187 |
| GTIN/EAN | 3250612364268 |
| Manufacturer part number | EPS450B |
| Vendor material number | 1480187 |
| Package measurements (L x W x H) | 60 x 18 x 83 mm |
| Package volume | 0.09 l |
| Package weight | 0.083 kg |
| Package units | 1 |
| Usage quantity | 1 |
| UNSPSC | 39121514 |
| Brand | HAGER |
| Built-in depth | 60 mm |
| Control voltage 1 | 8 ... 230 V |
| Control voltage 2 | 0 ... 0 V |
| Frequency control voltage 1 | 50 ... 60 Hz |
| Frequency control voltage 2 | 50 ... 60 Hz |
| Function | Electronic switch |
| Manual operation possible | true |
| Max. incandescent lamp load | 1500 W |
| Max. load fluorescent lamp | 1000 VA |
| Max. load fluorescent lamp (Duo circuit) | 600 VA |
| Max. load fluorescent lamp (parallel compensated) | 300 VA |
| Max. switching current (cos phi = 0.6) | 16 A |
| Mounting method | DIN rail |
| Number of change-over contacts | 0 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 1 |
| Number of normally closed contacts | 0 |
| Number of normally open contacts | 1 |
| Rated switch current | 16 A |
