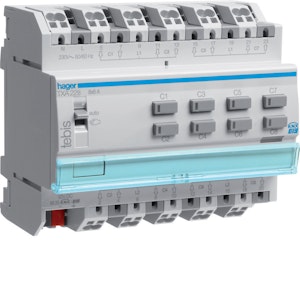

hager Knx markiseaktor 8 k 230v mod txa227 hager

KNX MARKISEAKTOR 8 K 230V MOD TXA227 HAGER

Product number
4500143
KNX MARKISEAKTOR 8K 230V MOD
KNX MARKISEAKTOR 8 KANAL 230V MODULÆR Norm: EN 60669-1 EN 60669-2-1 EN 50090-2-2, 30V DC systemspenning, 230V ~50/60 Hz, Eget forbruk 4 W, IP 30, Driftstemperatur 0ºC - +45ºC, Applikasjonsprogram TL227B V_2.0, programmeres med TX100 eller ETS, WAGO Quick Connect tilkoblingsklemme, manuell betjening direkte på produkt, LED indikering av koblingstilstand
Product codes
Basic information
Technical specifications
Documents (1)
SAPGBU225
PLC4500143
STK4500143
GTIN/EAN3250616049482
Manufacturer part numberTXA227
Vendor material number4500143
Package measurements (L x W x H)69 x 107 x 90 mm
Package volume0.664 l
Package weight0.38 kg
Package units1
Usage quantity1
UNSPSC39121107
BrandHAGER
Bus system KNXtrue
Bus system KNX radiofalse
Bus system LONfalse
Bus system Powernetfalse
Bus system radio frequentfalse
Degree of protection (IP)IP20
Local operation/hand operationtrue
Max. number of venetian-blind outputs8
Max. switching power1380 W
Mounting methodDRA (DIN-rail adapter)
Number of inputs0
Other bus systemsTebis TX
Radio frequent bidirectionalfalse
Switching current (resistive)6 A
Type of currentDC
Width in number of modular spacings6
With LED indicationtrue
With bus connectiontrue
With switch functionfalse
