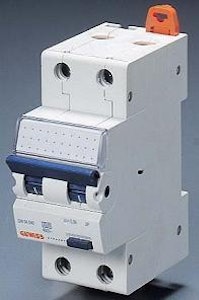

EL AUT./ JORDFEIL, B, 2P, 30MA GW95 225B
Product number
1612735
JORDFEILAUT, B, 25A, 2P, 30mA
JORDFEILAUTOMAT MDC, B, 30mA, 25A, 2P, 10kA, 2 MOD JORDFEILAUTOMAT MDC, B, 25A, 2P, 10kA, 30mA, 2 MODULER, VARIG MERKING, GUL FANE VED JORDFEIL, KJØLERIBBER
Product codes
Basic information
Technical specifications
Documents (3)
| SAP | GBT938 |
|---|---|
| PLC | 1612735 |
| STK | 1612735 |
| GTIN/EAN | 8011564299252 |
| Manufacturer part number | GW95329 |
| Vendor material number | 1612735 |
| Package measurements (L x W x H) | 98 x 83 x 41 mm |
| Package volume | 0.333 l |
| Package weight | 251.987 kg |
| Package units | 1 |
| Usage quantity | 1 |
| UNSPSC | 39121614 |
| Brand | MALTHE WINJE |
| Anti-nuisance tripping version | false |
| Built-in depth | 72 mm |
| Concurrently switching neutral conductor | false |
| Current limiting class | 3 |
| Degree of protection (IP) | IP20 |
| Frequency | 50 Hz |
| Leakage current type | A |
| Number of poles (total) | 2 |
| Number of protected poles | 2 |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Rated current | 25 A |
| Rated fault current | 0.03 A |
| Rated short-circuit breaking capacity according to IEC 60947-2 | 10 kA |
| Rated voltage | 230 V |
| Release characteristic | B |
| Suitable for flush-mounted installation | false |
| Surge current capacity | 0.25 kA |
| Voltage type | AC |
| Width in number of modular spacings | 2 |
