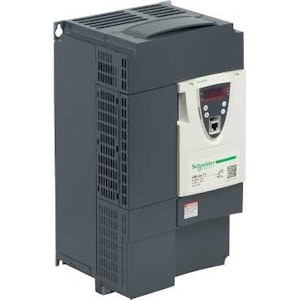

ATV71 400V 18.5KW MEMC IP20 ATV71HD18N4

Product number
4147426
variable speed drive ATV71 - 18.5kW-25HP - 480V - EMC filter-graphic terminal
Variable speed drive ATV71, 18,5kW-25HP, 480V, EMC filter-graphic terminal. range of product: Altivar 71 - product or component type: variable speed drive - component name: ATV71 - network number of phases: 3 phases - line current: 37.5 A for 480 V 3 phases 18.5 kW / 25 hp, 45.5 A for 380 V 3 phases 18.5 kW / 25 hp - EMC filter: integrated - assembly style: with heat sink - nominal output current: 34 A at 4 kHz 460 V 3 phases 18.5 kW / 25 hp, 41 A at 4 kHz 380 V 3 phases 18.5 kW / 25 hp - maximum transient current: 61.5 A for 60 s 3 phases 18.5 kW / 25 hp, 67.7 A for 2 s 3 phases 18.5 kW / 25 hp - output frequency: 0.1...599 kHz - nominal switching frequency: 4 kHz - switching frequency: 1...16 kHz adjustable, 4...16 kHz with derating factor - asynchronous motor control profile: ENA (Energy adaptation) system for unbalanced loads, flux vector control (FVC) with sensor (current vector), sensorless flux vector control (SFVC) (voltage or current vector), voltage/frequency ratio (2 or 5 points). Benefits: Make way for evolution!. Unique range up to 630 kW, exceptional performance, advanced functions. Open to all communication networks, applications, users. Altivar 71 provides ingenious solutions for all your particular requirements.... Applications: High performance applications (constant torque):, Material handling, Hoisting, Wood machines, Process machines, Textile machines, Packaging..

Product details

Technical specifications

4-quadrant operation possibletrue
Application in domestic- and commercial area permittedtrue
Application in industrial area permittedtrue
Degree of protection (IP)IP20
Depth213 mm
Height400 mm
Integrated breaking resistancefalse
Mains frequency50/60 Hz
Mains voltage380 ... 480 V
Max. output at linear load at rated output voltage18.5 kW
Max. output at quadratic load at rated output voltage0 kW
Max. output frequency599 Hz
Max. output voltage480 V
Measuring output current41 A
Nominal output current I2N41 A

Product codes

SAPGBV531
PLC4147426
STK4147426
GTIN/EAN3389118064386
Manufacturer part numberATV71HD18N4
Vendor material numberATV71HD18N4

Basic information

Package measurements (L x W x H)600 x 401 x 350 mm
Package volume84.21 l
Package weight24.464 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC39121529
BrandSCHNEIDER
