FIBERPANEL FO 1U VDIG150991
Product number
6993672

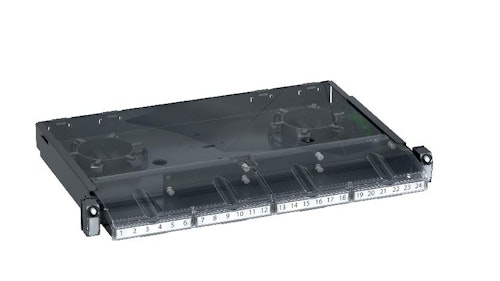

Actassi 19" fiberpanel med spoler 1U, blindplater, 24 fiber
LexCom 19" fiberpaneler 19" fiberpanel uttrekkbar, 1U med plass til 4 adapterplater, leveres med 3 blindplater. Utstyrt med hurtigfeste på begge sider. Transparent lokk for beskyttelse og oversikt. Leveres med 2 fiberspoler og 2 PG9 (Ø 7 mm maks.) kabelnipler.
Product codes
Basic information
Technical specifications
Documents (3)
| SAP | GBV563 |
|---|---|
| PLC | 6993672 |
| STK | 6993672 |
| GTIN/EAN | 3606485122885 |
| Manufacturer part number | VDIG150991 |
| Vendor material number | VDIG150991 |
| Package measurements (L x W x H) | 580 x 440 x 50 mm |
| Package volume | 12.76 l |
| Package weight | 5 kg |
| Package units | 1 |
| Usage quantity | 1 |
| UNSPSC | 43201500 |
| Brand | SCHNEIDER |
| APC-version | false |
| Colour | Grey |
| Depth | 300 mm |
| Fibre class | OM1 |
| Fibre type | Single mode |
| Height | 45 mm |
| Mounting method | 482.6 mm (19 inch) mounting |
| Number of height units | 1 |
| RAL-number | 7016 |
| Suitable for number of couplings/adapters | 24 |
| Suitable for number of module inserts | 4 |
| Type of connector external | Other |
| Type of connector interior | Other |
| Width | 490 mm |
| With front plate | true |
| With housing | false |
| With number of couplings/adapters | 0 |
| With pigtails | false |
