OL50 MATEKAB. GST18I3 0,5M H INS76126
Product number
1223253
OL50 Matekab. GST18i3 2m H

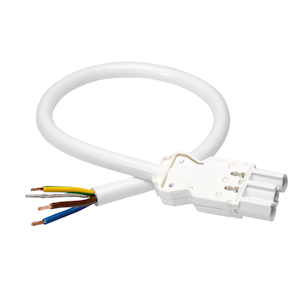

Tilkoblingskabel, enfase, GST 18i3 H05VV-F3G2.5, 3-polet, 3 x 2,5 mm². PVC-kabel, Ø 10,2 mm, 250 V,16 A, han/fri med loddede lederender.Materiale: PVC, PA.
Product codes
Basic information
Technical specifications
Documents (3)
| SAP | GBW609 |
|---|---|
| PLC | 1223253 |
| STK | 1223253 |
| GTIN/EAN | 3606485112367 |
| Manufacturer part number | INS76126 |
| Vendor material number | INS76126 |
| Package measurements (L x W x H) | 250 x 250 x 23 mm |
| Package volume | 1.438 l |
| Package weight | 0.355 kg |
| Package units | 1 |
| Usage quantity | 1 |
| UNSPSC | 39121207 |
| Brand | SCHNEIDER |
| Cable diameter | 10.2 ... 10.2 mm |
| Cable permanent temperature-resistant to | 70 °C |
| Cable type | H05VV-F |
| Cable type | H05VV-F |
| Colour coding/contact insert | White |
| Colour housing | White |
| Colour outer sheath | White |
| Conductor diameter | 10.5 mm |
| Conductor end treatment | Ultrasonic compressed wire ends |
| Continuity resistor | 50 mOhm |
| Degree of protection (IP) | IP20 |
| Dismantle length | 35 mm |
| Fire load | 0.58 kWh |
| Halogen free | false |
| Insulating piece permanent temperature-resistant | 100 °C |
| Interlockable | true |
| Locking mechanism | Separate |
| Max. operating temperature at conductor | 70 °C |
| Mechanical coding | false |
| Nominal cross section conductor | 2.5 mm² |
