OL50 MATEKAB. GST18I3 S 0,5M H INS76402
Product number
1223257
OL50 Matekab. GST18i3 S 2m H

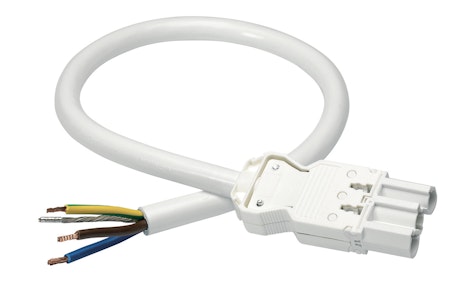

Tilførselskabel, skjermet, enfase, GST18, 3-polet, 2,5mm². Halogenfri kabel Ø10,2mm, 250V 16A. Han-ende er fri med sveisede lederender. Materiale PE/PP PA (Halogenfri plast).
Product codes
Basic information
Technical specifications
Documents (3)
| SAP | GBW610 |
|---|---|
| PLC | 1223257 |
| STK | 1223257 |
| GTIN/EAN | 3606485112473 |
| Manufacturer part number | INS76402 |
| Vendor material number | INS76402 |
| Package measurements (L x W x H) | 250 x 250 x 25 mm |
| Package volume | 1.563 l |
| Package weight | 0.355 kg |
| Package units | 1 |
| Usage quantity | 1 |
| UNSPSC | 39121207 |
| Brand | SCHNEIDER |
| Cable diameter | 10.2 ... 10.2 mm |
| Cable permanent temperature-resistant to | 70 °C |
| Cable type | S05Z1Z1-F/ L03Z1Z1 |
| Colour coding/contact insert | White |
| Colour housing | White |
| Colour outer sheath | White |
| Conductor end treatment | Ultrasonic compressed wire ends |
| Continuity resistor | 50 mOhm |
| Degree of protection (IP) | IP20 |
| Dismantle length | 35 mm |
| Fire load | 0.46 kWh |
| Halogen free | true |
| Insulating piece permanent temperature-resistant | 100 °C |
| Locking mechanism | None |
| Max. operating temperature at conductor | 0 °C |
| Mechanical coding | true |
| Nominal cross section conductor | 2.5 mm² |
| Number of poles | 3 |
| Pole codification | L, N, PE, D1, D2 |
| Pollution degree | 2 |
