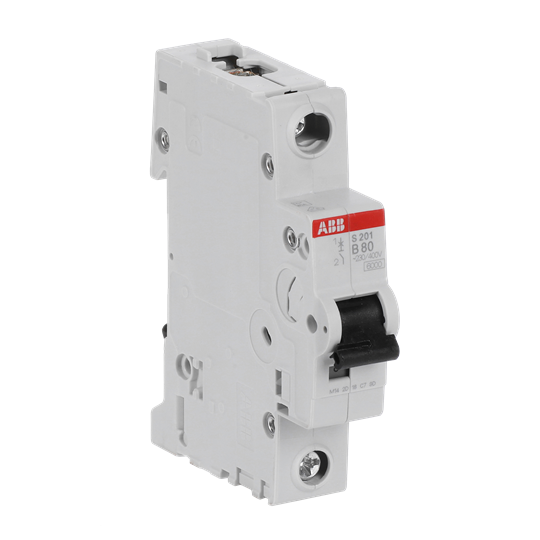

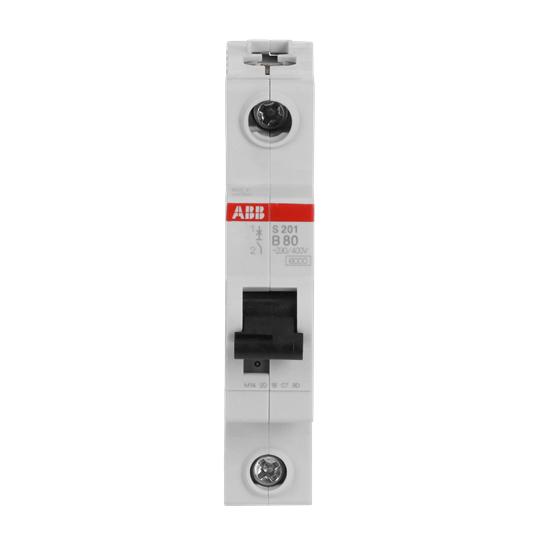

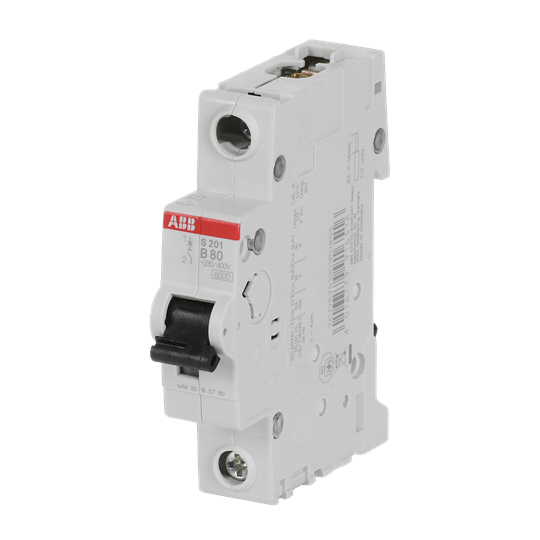

Automat S201-B80
Product number
1682943
S201-B80, 6kA, 80A, B-karakteristikk
S 200 B karakteristikk
Funksjon: Beskyttelse og overvåkning mot overlast og kortslutning.
Beskytter mennesker og lange kabler i TN og IT systemer.
Bruksområde: bolig, forretningsbygg og industri.
Standard: IEC/EN 60898, IEC/EN 60947-2
Icn=6 kA
Product details
Technical specifications
Built-in depth69 mm
Release characteristicB
Number of poles (total)1
Number of protected poles1
Rated current80 A
Rated voltage230 V
Rated insulation voltage Ui440 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6 kA
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10 kA
Frequency50 - 60 Hz
Power loss8.1 W
Product codes
SAPDCT006
El number1682943
Product number1682943
GTIN/EAN4016779916516
Manufacturer part number2CDS251001R0805
Vendor material number2CDS251001R0805
Basic information
Package measurements (L x W x H)85 x 17.5 x 69 mm
Package volume0.103 l
Package weight0.125 kg
Base uniteach
Package units1 / 10
Usage quantity–
UNSPSC32000000
BrandABB
Country of OriginDE Germany
Customs tariff code85362000
