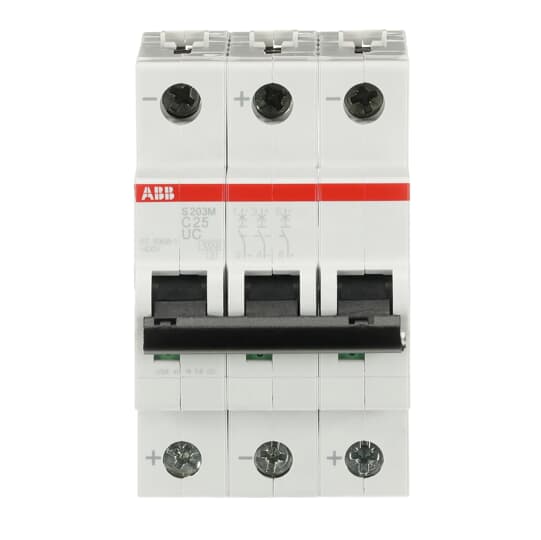

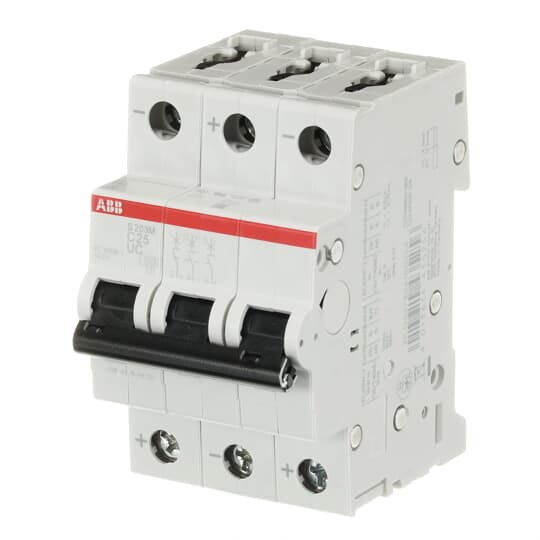

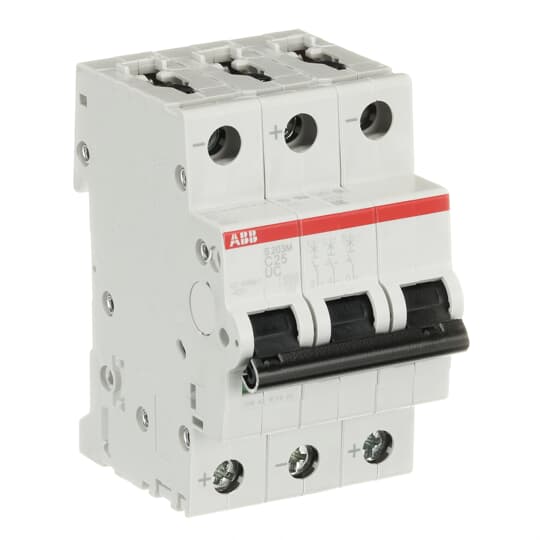

AUTOMAT S203M-C25 UC
Product number
1682676
S203M, 10kA, 3Pol, C-kar, 25A, UC, DC-applikasjoner
S 200M UC serie, C karakteristikk
Funksjon: Beskyttelse og overvåkning mot overlast og kortslutning. Beskytter resitive og induktive laster med lav startstrøm.
Spesialversjon beregnet for likestrømsapplikasjoner og er designet for bruk opp til 220 V DC 1 pol og 440 V DC 2 poler.
Applikasjoner: Industri.
Standard: IEC/EN 60898-2, IEC/EN 60947-2, UL1077, CSA 22.2 No. 235
Icn=10 kA
Product details
Technical specifications
Built-in depth69 mm
Release characteristicC
Number of poles (total)3
Number of protected poles3
Rated current25 A
Rated voltage400 V
Rated insulation voltage Ui440 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10 kA
Voltage typeAC/DC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10 kA
Frequency50 - 60 Hz
Power loss7.86 W
Product codes
SAPDCT560
El number1682676
Product number1682676
GTIN/EAN4013614435256
Manufacturer part number2CDS273061R0254
Vendor material number2CDS273061R0254
Basic information
Package measurements (L x W x H)85 x 52.5 x 69 mm
Package volume0.308 l
Package weight0.375 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandABB
Country of OriginDE Germany
Customs tariff code85361000
