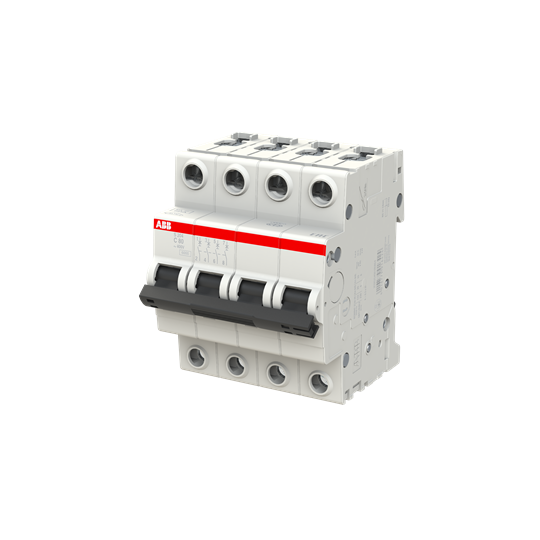

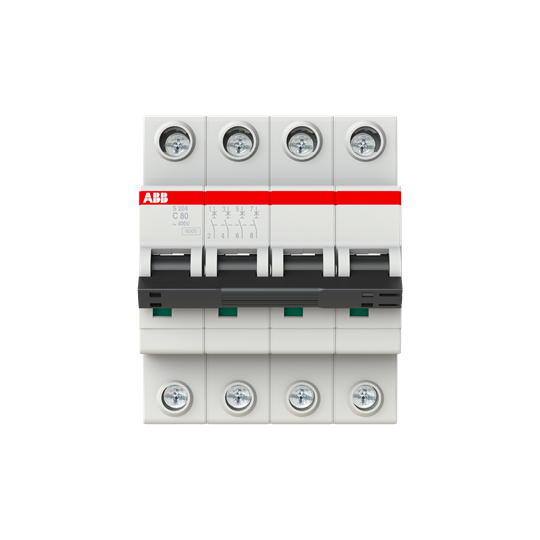

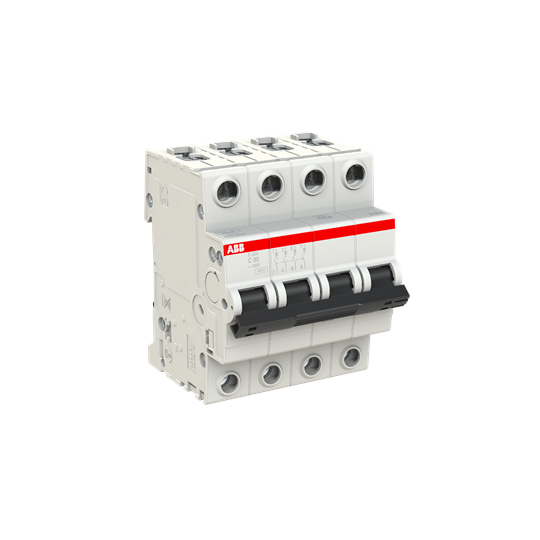

Automat S204-C80
Product number
1682961
S204-C80, 6kA, 80A, C-karakteristikk
S 200 C karakteristikk
Funksjon: Beskyttelse og overvåkning mot overlast og kortslutning. Beskytter resitive og induktive laster med lav startstrøm.
Bruksområde: Bolig, forretningsbygg og industri.
Standard: IEC/EN 60898, IEC/EN 60947-2
Icn=6 kA
Product details
Technical specifications
Built-in depth69 mm
Release characteristicC
Number of poles (total)4
Number of protected poles4
Rated current80 A
Rated voltage400 V
Rated insulation voltage Ui440 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6 kA
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V20 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V6 kA
Frequency50 - 60 Hz
Power loss8.1 W
Product codes
SAPDCT146
El number1682961
Product number1682961
GTIN/EAN4016779916424
Manufacturer part number2CDS254001R0804
Vendor material number2CDS254001R0804
Basic information
Package measurements (L x W x H)88 x 70 x 69 mm
Package volume0.425 l
Package weight0.56 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandABB
Country of OriginDE Germany
Customs tariff code85362000
Sustainability info
Global Warming Potential (GWP)
GWP value for A1– A34.9028
GWP uniteach
Data source for GWPEandoX
