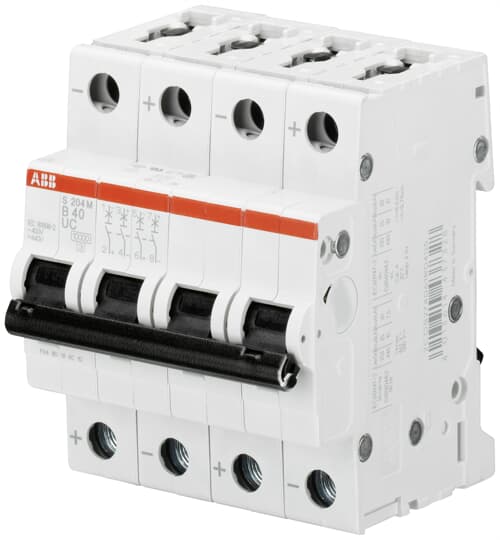

AUTOMAT S204M-C25 UC
Product number
1682693
S204M, 10kA, 4Pol, C-kar, 25A, UC, DC-applikasjoner
S 200M UC serie, C karakteristikk
Funksjon: Beskyttelse og overvåkning mot overlast og kortslutning. Beskytter resitive og induktive laster med lav startstrøm.
Spesialversjon beregnet for likestrømsapplikasjoner og er designet for bruk opp til 220 V DC 1 pol og 440 V DC 2 poler.
Applikasjoner: Industri.
Standard: IEC/EN 60898-2, IEC/EN 60947-2, UL1077, CSA 22.2 No. 235
Icn=10 kA
Product details
Technical specifications
Built-in depth69 mm
Release characteristicC
Number of poles (total)4
Number of protected poles4
Rated current25 A
Rated voltage400 V
Rated insulation voltage Ui440 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10 kA
Voltage typeAC/DC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10 kA
Frequency50 - 60 Hz
Power loss10.48 W
Product codes
SAPDCT757
El number1682693
Product number1682693
GTIN/EAN4013614437472
Manufacturer part number2CDS274061R0254
Vendor material number2CDS274061R0254
Basic information
Package measurements (L x W x H)85 x 70 x 69 mm
Package volume0.411 l
Package weight0.5 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandABB
Country of OriginDE Germany
Customs tariff code85361000
