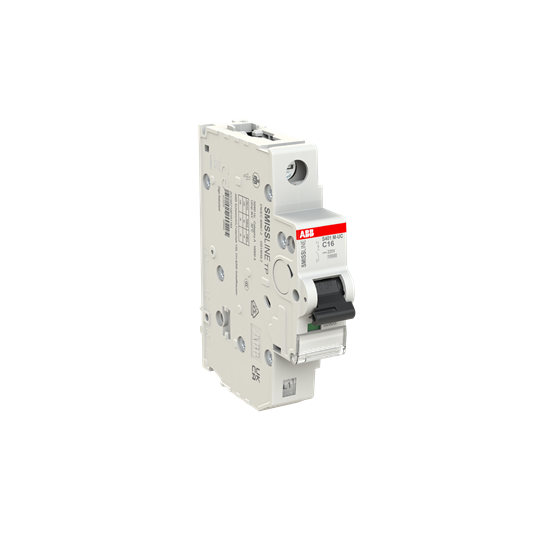

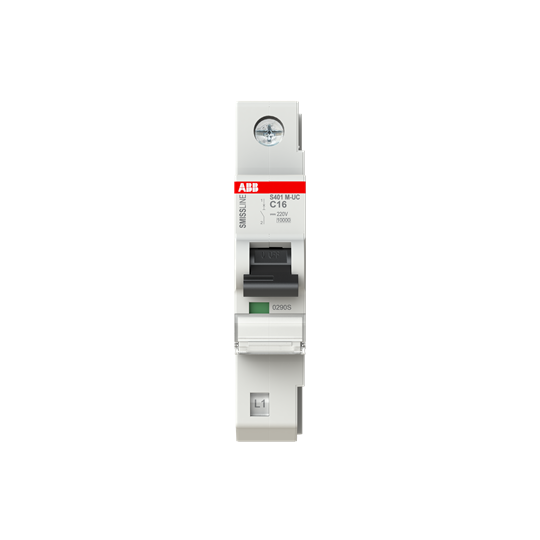

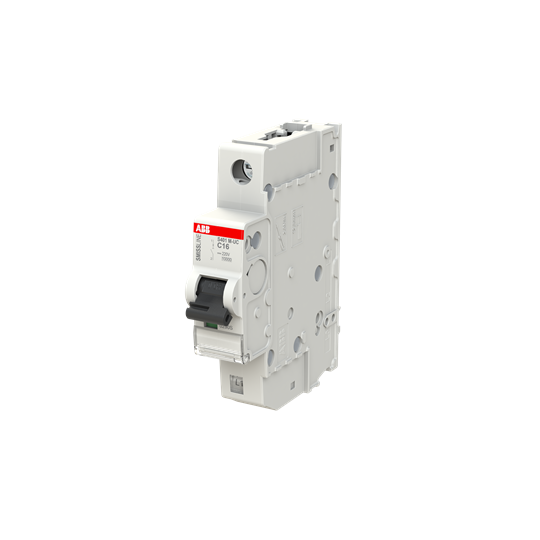

AUTOMAT S401M-C16 UC
Product number
1623271
S401M, UC, 1pol, 10kA, 16A, C-karakteristikk, Smissline
S 400 UC-C karakteristikk
Spesialversjon beregnet for likestrømsapplikasjoner opp til 125 V DC 1 pol og 250 V DC 2 poler.
Product details
Technical specifications
Built-in depth75 mm
Release characteristicOther
Number of poles (total)1
Number of protected poles1
Rated current16 A
Rated voltage230 V
Rated insulation voltage Ui440 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10 kA
Voltage typeAC/DC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25 kA
Frequency50 - 60 Hz
Power loss2.6 W
Product codes
SAPDCR982
El number1623271
Product number1623271
GTIN/EAN7612270109845
Manufacturer part number2CCS571001R1164
Vendor material number2CCS571001R1164
Basic information
Package measurements (L x W x H)91 x 18 x 75 mm
Package volume0.123 l
Package weight0.145 kg
Base uniteach
Package units1 / 10
Usage quantity–
UNSPSC32000000
BrandABB
Country of OriginCH Switzerland
Customs tariff code85363000
