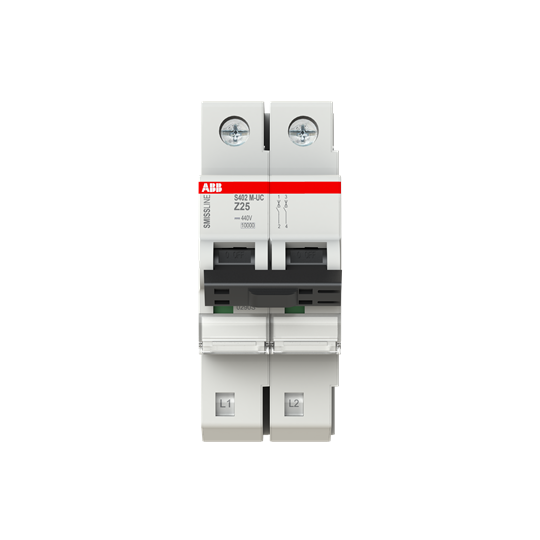

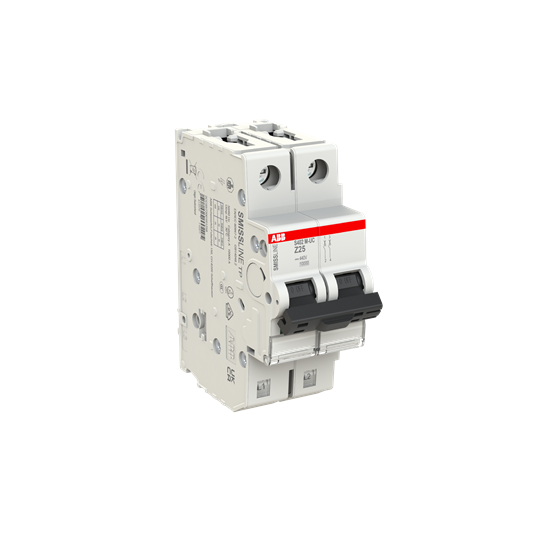

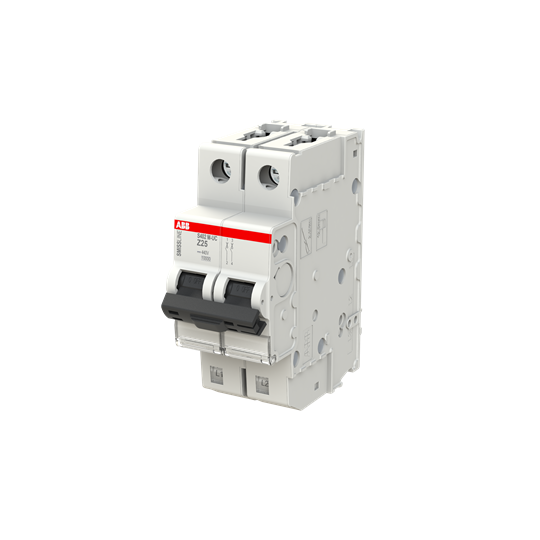

AUTOMAT S402M-Z25 UC
Product number
1623381
S402M, UC, 2pol, 10kA, 25A, Z-karakteristikk, Smissline
S 400 UC-Z karakteristikk
Spesialversjon beregnet for likestrømsapplikasjoner opp til 125 V DC 1 pol og 250 V DC 2 poler.
Product details
Technical specifications
Built-in depth75 mm
Release characteristicOther
Number of poles (total)2
Number of protected poles2
Rated current25 A
Rated voltage400 V
Rated insulation voltage Ui440 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10 kA
Voltage typeAC/DC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15 kA
Frequency50 - 60 Hz
Power loss5.4 W
Product codes
SAPDCS104
El number1623381
Product number1623381
GTIN/EAN7612270110377
Manufacturer part number2CCS572001R1258
Vendor material number2CCS572001R1258
Basic information
Package measurements (L x W x H)91 x 36 x 75 mm
Package volume0.246 l
Package weight0.29 kg
Base uniteach
Package units1 / 5
Usage quantity–
UNSPSC32000000
BrandABB
Country of OriginCH Switzerland
Customs tariff code85363000
