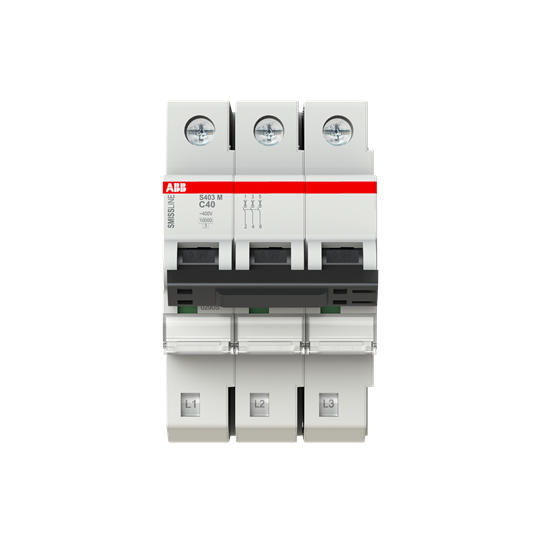

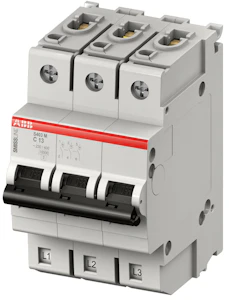

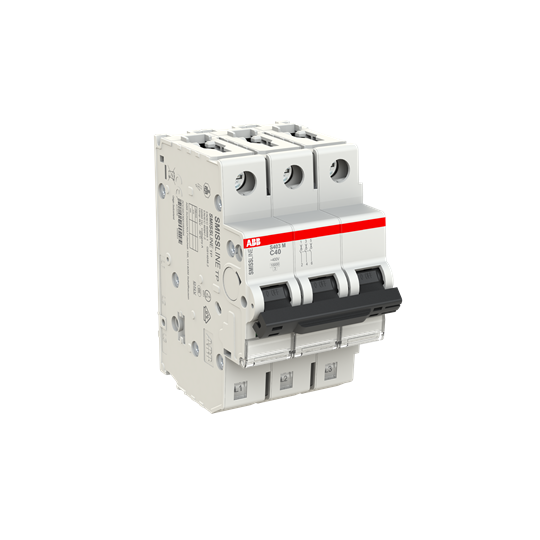

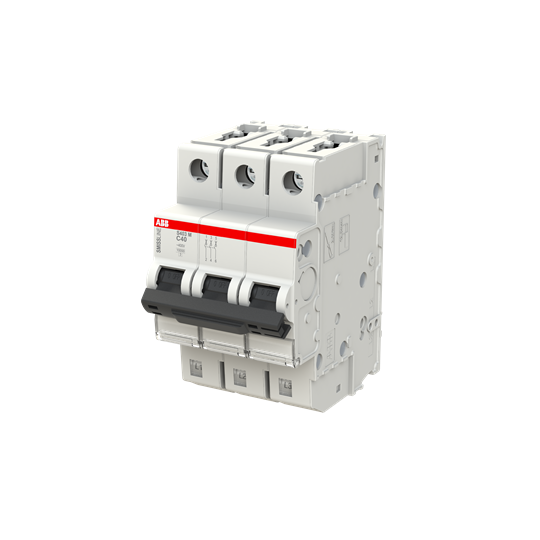

AUTOMAT S403M-C40
Product number
1623412
Automat, S403M, 3pol, 40A, C-karakteristikk, SMISSLINE TP
S 400 M-C karakteristikk
Funksjon: Beskyttelse og overvåkning mot overlast og kortslutning. Beskytter resistive og induktive laster med lav startstrøm.
Applikasjoner: Bolig, forretningsbygg og industri.
Standard: IEC/EN 60898, IEC/EN 60947-2
Icn=10 kA
Product details
Technical specifications
Built-in depth75 mm
Release characteristicC
Number of poles (total)3
Number of protected poles3
Rated current40 A
Rated voltage415 V
Rated insulation voltage Ui440 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10 kA
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15 kA
Frequency50 - 60 Hz
Power loss11.1 W
Product codes
SAPDCS145
El number1623412
Product number1623412
GTIN/EAN7612270103003
Manufacturer part number2CCS573001R0404
Vendor material number2CCS573001R0404
Basic information
Package measurements (L x W x H)91 x 54 x 75 mm
Package volume0.369 l
Package weight0.322 kg
Base uniteach
Package units1 / 4
Usage quantity–
UNSPSC32000000
BrandABB
Country of OriginCH Switzerland
Customs tariff code85362000
