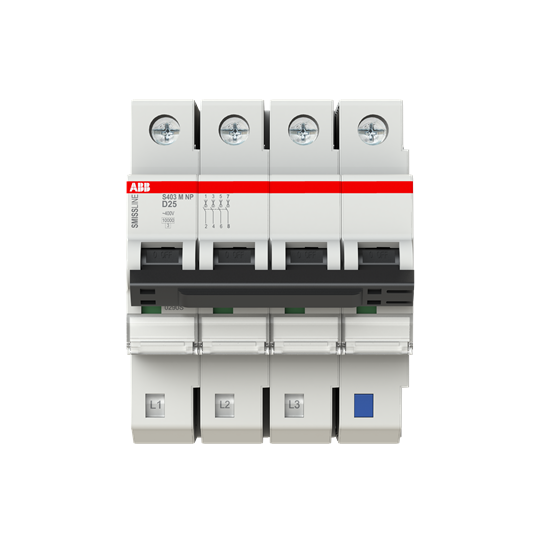

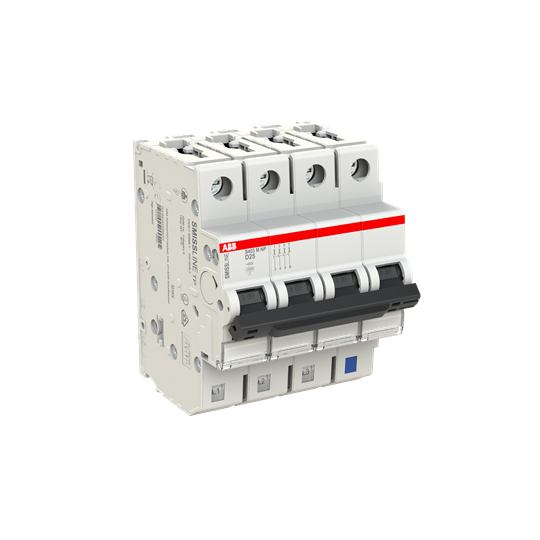

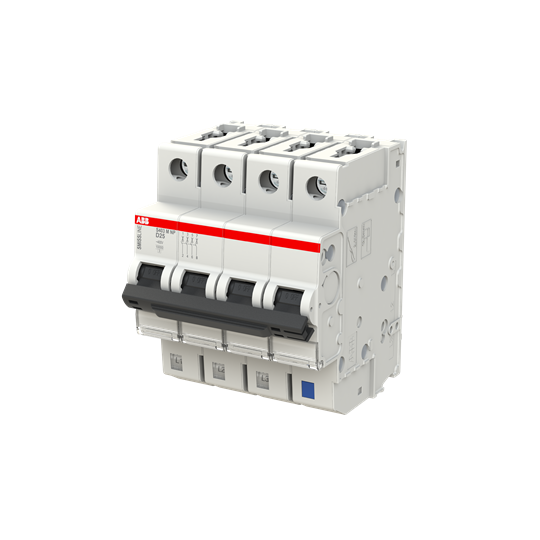

AUTOMAT S403M-D25 NP
Product number
1623523
S403M, 3+N (fullt vern i N), 10kA, 25A, D-karakteristikk, Smissline
S 400 M-D karakteristikk
Funksjon: Beskytter og overvåker kretser som motor, transformatorer og hjelpestrømkretser mot overlast og kortslutning.
Bruksområde: Forretningsbygg og industri.
Standard: IEC/EN 60898-1
Icn=10 kA
Product details
Technical specifications
Built-in depth75 mm
Release characteristicD
Number of poles (total)4
Number of protected poles4
Rated current25 A
Rated voltage400 V
Rated insulation voltage Ui440 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10 kA
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50 kA
Frequency50 - 60 Hz
Power loss9.6 W
Product codes
SAPDCS181
El number1623523
Product number1623523
GTIN/EAN7612270104031
Manufacturer part number2CCS573103R8251
Vendor material number2CCS573103R8251
Basic information
Package measurements (L x W x H)91 x 72 x 75 mm
Package volume0.491 l
Package weight0.428 kg
Base uniteach
Package units1 / 3
Usage quantity–
UNSPSC32000000
BrandABB
Country of OriginCH Switzerland
Customs tariff code85362000
