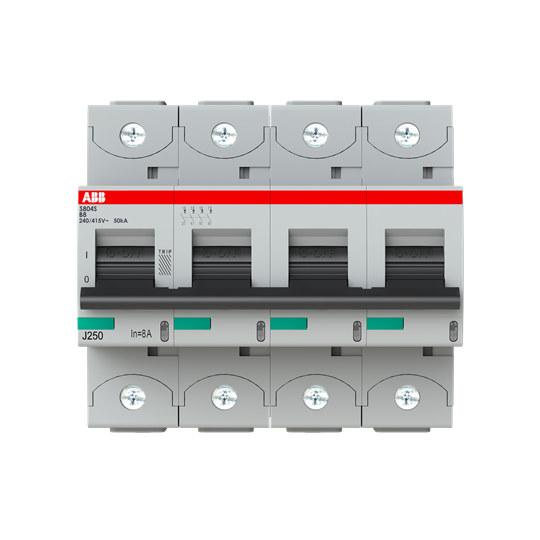

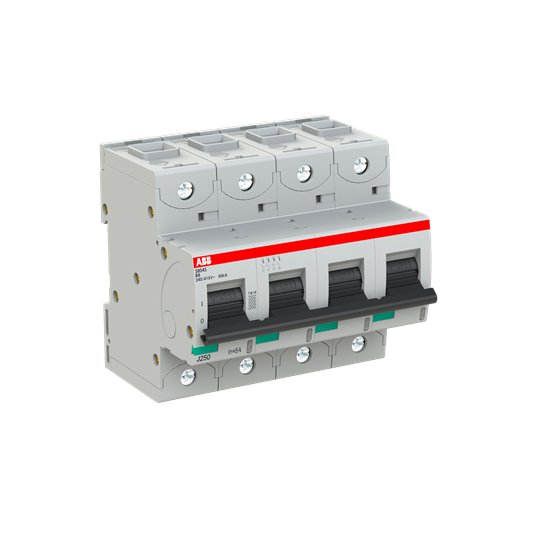

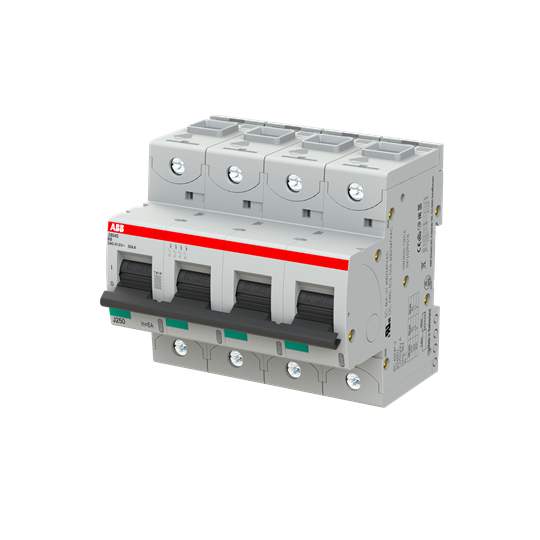

Automat S804S-B8
Product number
1628407
S800S, 50kA Icu, 4Pol, B-kar, 8A
S 800 S-B karakteristikk
Funksjon: Beskyttelse mot overlast og kortslutning der det er krav om høy bryteevne. Beskytter mennesker og lange kabler i TN og IT nett. Utmerket til applikasjoner der det er behov for selektivitet mot overstående bryter, eller back-up til underliggende automat.
Applikasjoner: Forretningsbygg og industri.
Standard: IEC/EN 60898, IEC/EN 60947-2
Icn=25 kA
Icu=50 kA
Product details
Technical specifications
Built-in depth82.5 mm
Release characteristicB
Number of poles (total)4
Number of protected poles4
Rated current8 A
Rated voltage400 V
Rated insulation voltage Ui690 V
Rated impulse withstand voltage Uimp8 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V25 kA
Voltage typeAC/DC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V6 kA
Frequency50 - 60 Hz
Power loss6.8 W
Product codes
SAPDCS643
El number1628407
Product number1628407
GTIN/EAN7612271411350
Manufacturer part number2CCS864001R0085
Vendor material number2CCS864001R0085
Basic information
Package measurements (L x W x H)95 x 106 x 82.5 mm
Package volume0.831 l
Package weight0.98 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandABB
Country of OriginCH Switzerland
Customs tariff code85362000
