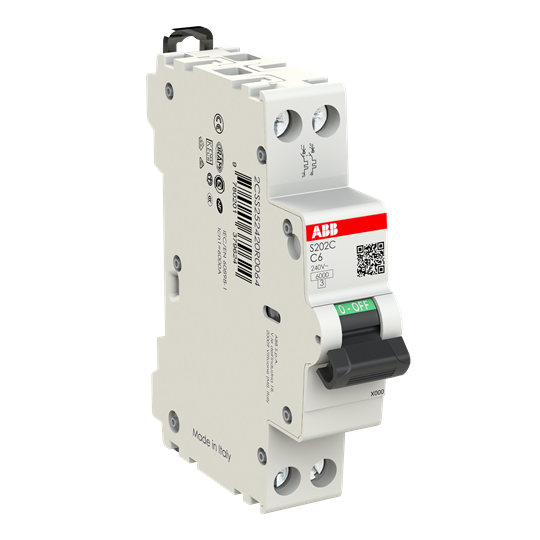

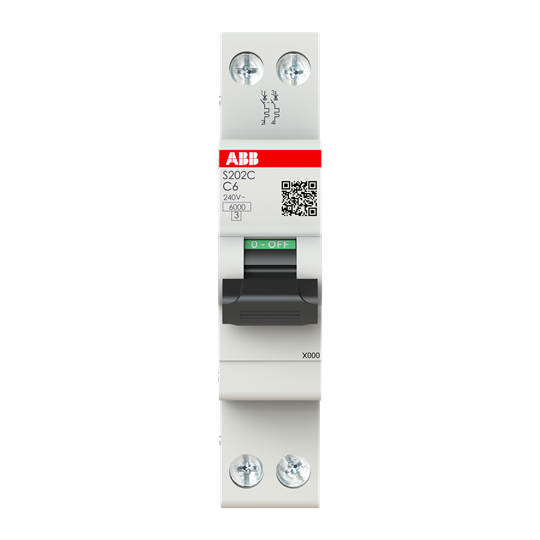

Automatsikring S202C-C6 Kompakt
Product number
1612612
Kompakt automatsikring, S202C, 2pol, 1mod, C-karakteristikk, 6A, 6kA. 2025
S200C serien er en kompaktserie der 1pol, 2pol og 1+1pol i kommer i 1 modul, 3pol og 4pol i 2 moduler, dette gjør at du sparer mye plass i skapet. Finnes i både 6kA og 10kA (kun 2polt) for å dekke bruksområder fra boliger til industri, inkludert marinesegmenter. Standard: IEC/EN 60898-88.
Product details
Technical specifications
Built-in depth69.4 mm
Release characteristicC
Number of poles (total)2
Number of protected poles2
Rated current6 A
Rated voltage240 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6 kA
Voltage typeAC
Frequency50 - 60 Hz
Power loss3.3 W
Current limiting class3
Overvoltage category3
Pollution degree2
Product codes
SAPDNF195
El number1612612
Product number1612612
GTIN/EAN8012542735151
Manufacturer part number2CSS252420R0064
Vendor material number2CSS252420R0064
Basic information
Package measurements (L x W x H)69 x 17.6 x 85 mm
Package volume0.103 l
Package weight0.12 kg
Base uniteach
Package units6 / 72
Usage quantity–
UNSPSC32000000
BrandABB
Country of OriginIT Italy
Customs tariff code85362000
