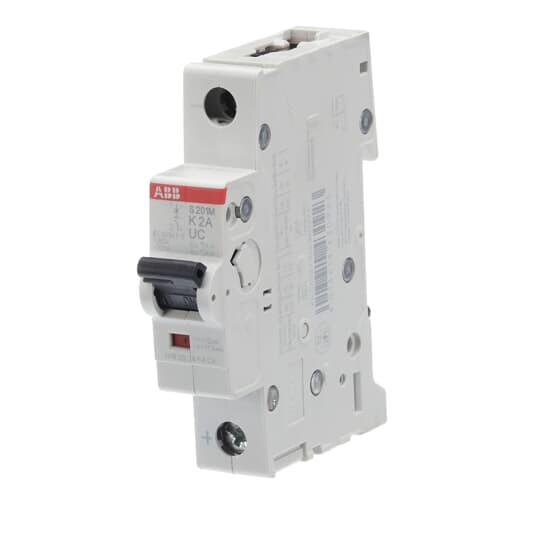

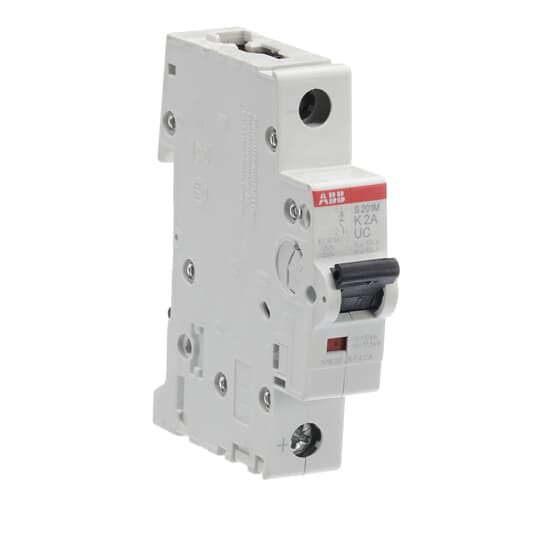

CIRCUIT BREAKER S200MUC 1-POLE K-CHAR. 2A
Product number
1682846
S201M, 10kA, 1Pol, K-kar, 2A, UC, DC-applikasjoner
S 200M UC serie,
Funksjon: Beskytter og overvåker mot overlast og kortslutning. Beskytter mennesker og lange kabellengder i TN- og IT-systemer.
Spesialversjon beregnet for likestrømsapplikasjoner og er designet for bruk opp til 220 V DC 1 pol og 440 V DC 2 poler. DC, 50/60Hz til maks 400Hz
Applikasjoner: Industri.
Standard: IEC/EN 60898-2, IEC/EN 60947-2, UL1077, CSA 22.2 No. 235
Icn=10 kA
Product details
Technical specifications
Built-in depth69 mm
Release characteristicK
Number of poles (total)1
Number of protected poles1
Rated current2 A
Rated voltage220 V
Rated insulation voltage Ui440 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10 kA
Voltage typeAC/DC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10 kA
Frequency50 - 60 Hz
Power loss1.78 W
Current limiting class3
Product codes
SAPCMG059
El number1682846
Product number1682846
GTIN/EAN4013614430923
Manufacturer part number2CDS271061R0277
Vendor material number2CDS271061R0277
Basic information
Package measurements (L x W x H)58 x 92 x 80 mm
Package volume0.427 l
Package weight1.3 kg
Base uniteach
Package units1 / 120 / 120 / 3840
Usage quantity–
UNSPSC39121603
BrandABB
Country of OriginDE Germany
Customs tariff code85361000
