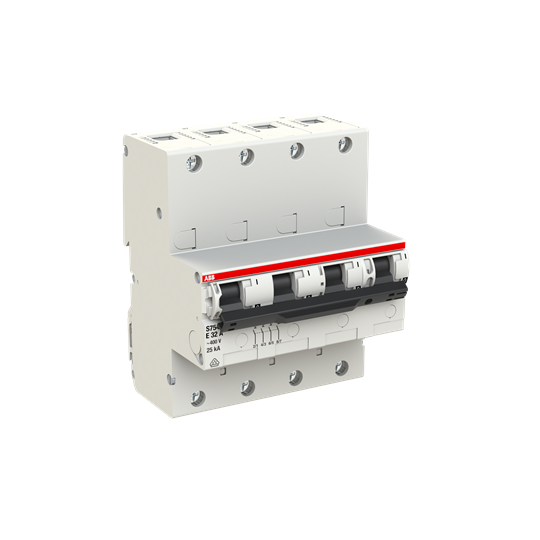

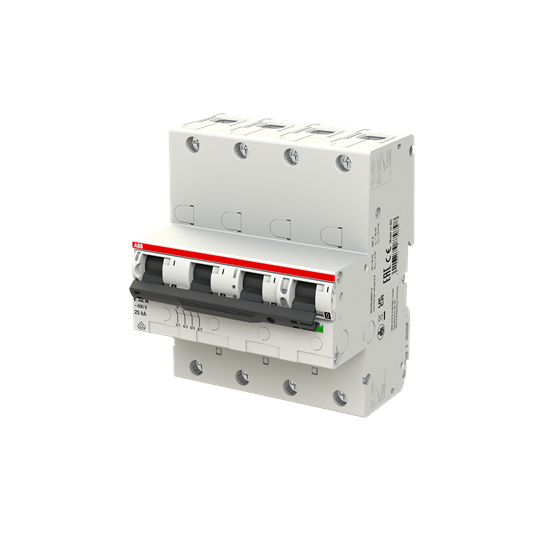

Hovedsikring Automat IEC S754DR-E32 Sel.
Product number
1634148
Automat, S754DR, 4 pol, 32A, E-karakteristikk, Selektiv
Selektivt overbelastningsvern.
Applikasjoner: Bolig, forretningsbygg og industri.
Standard: IEC/EN 60947-2
Icn=25 kA
Product details
Technical specifications
Release characteristicOther
Number of poles4
Rated current32 A
Rated insulation voltage Ui690 V
Rated switching capacity25 kA
Concurrently switching neutral conductorno
Overvoltage category4
Pollution degree3
Mounting methodDIN rail
Degree of protection (IP)IP20
Construction size according to DIN 438803
Product codes
SAPDJT956
El number1634148
Product number1634148
GTIN/EAN4016779879798
Manufacturer part number2CDH784010R0322
Vendor material number2CDH784010R0322
Basic information
Package measurements (L x W x H)96 x 108 x 130 mm
Package volume1.348 l
Package weight1.4 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandABB
Country of OriginBG Bulgaria
Customs tariff code85369090
