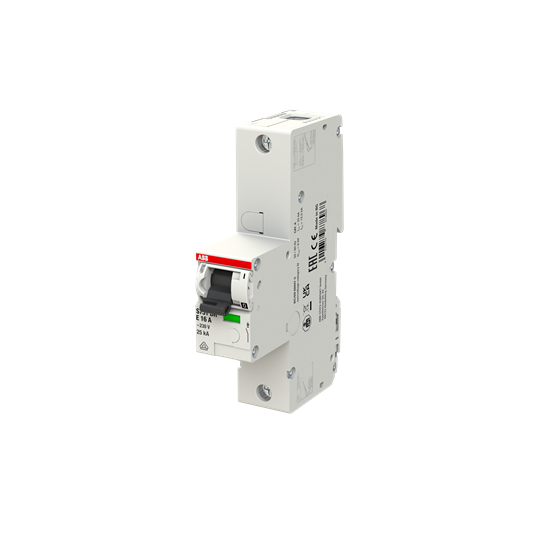

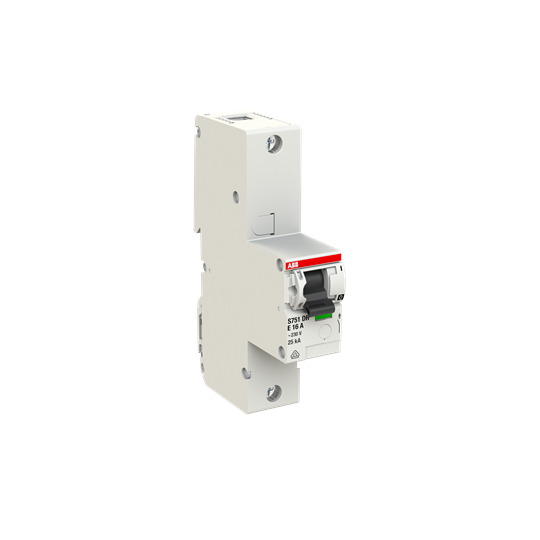

HOVEDSIKRING AUTOMAT S751DR-E16 SEL. IEC
Product number
1634100
S751, 1pol, 16A, E-karakteristikk, Selektiv, DIN-skinne montering
Selektivt overbelastningsvern.
Applikasjoner: Bolig, forretningsbygg og industri.
Standard: IEC/EN 60947-2
Icn=25 kA
Product details
Technical specifications
Release characteristicOther
Number of poles1
Rated current16 A
Rated insulation voltage Ui690 V
Rated switching capacity25 kA
Concurrently switching neutral conductorno
Overvoltage category4
Pollution degree3
Mounting methodDIN rail
Degree of protection (IP)IP20
Construction size according to DIN 438803
Product codes
SAPDJT967
El number1634100
Product number1634100
GTIN/EAN4016779878968
Manufacturer part number2CDH781010R0162
Vendor material number2CDH781010R0162
Basic information
Package measurements (L x W x H)92 x 27 x 130 mm
Package volume0.323 l
Package weight0.35 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandABB
Country of OriginBG Bulgaria
Customs tariff code85369090
