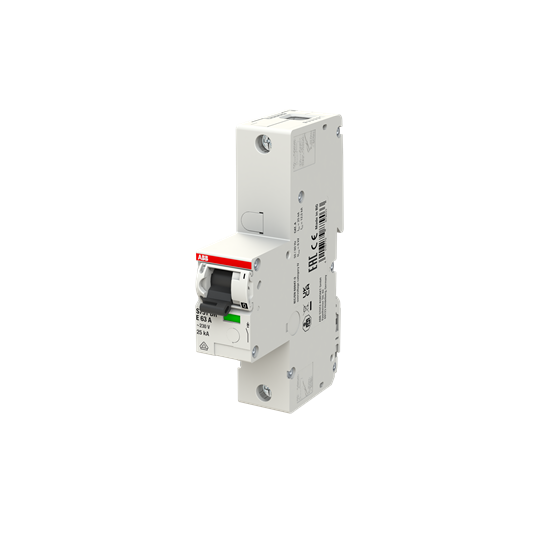

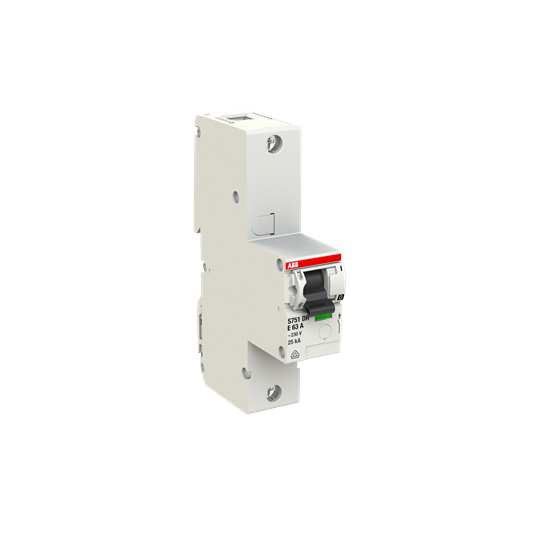

HOVEDSIKRING AUTOMAT S751DR-E63 SEL. IEC
Product number
1634113
S751, 1pol, 63A, E-karakteristikk, Selektiv, DIN-skinne montering
Selektivt overbelastningsvern.
Applikasjoner: Bolig, forretningsbygg og industri.
Standard: IEC/EN 60947-2
Icn=25 kA
Product details
Technical specifications
Release characteristicOther
Number of poles1
Rated current63 A
Rated insulation voltage Ui690 V
Rated switching capacity25 kA
Concurrently switching neutral conductorno
Overvoltage category4
Pollution degree3
Mounting methodDIN rail
Degree of protection (IP)IP20
Construction size according to DIN 438803
Product codes
SAPDJT982
El number1634113
Product number1634113
GTIN/EAN4016779879033
Manufacturer part number2CDH781010R0632
Vendor material number2CDH781010R0632
Basic information
Package measurements (L x W x H)92 x 27 x 130 mm
Package volume0.323 l
Package weight0.35 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandABB
Country of OriginBG Bulgaria
Customs tariff code85369090
