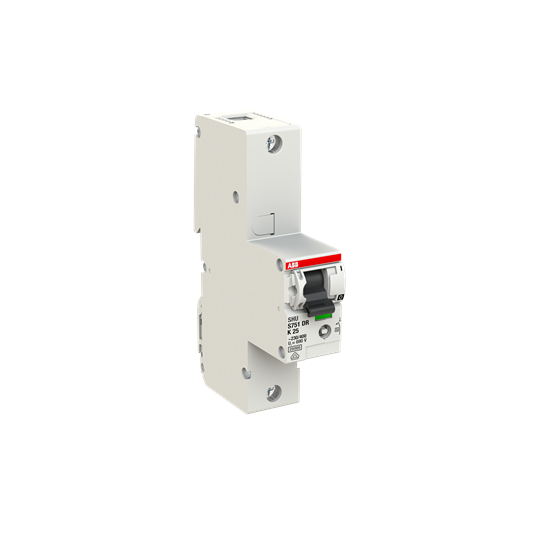

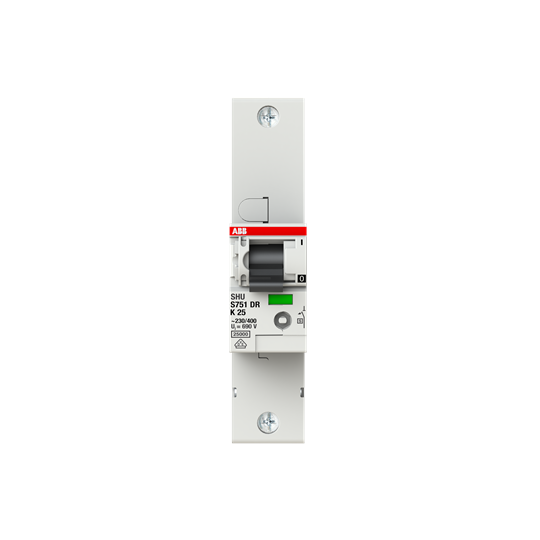

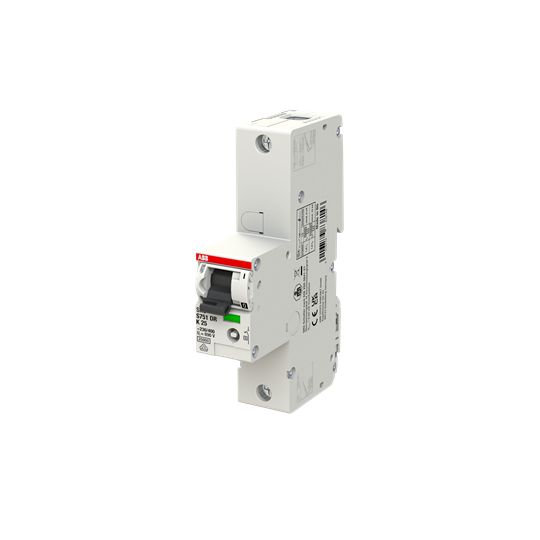

HOVEDSIKRING AUTOMAT S751DR-K25 SEL
Product number
1634360
S751, 1pol, 25A, K-karakteristikk, Selektiv, DIN-skinne montering
Selektivt overbelastningsvern.
Applikasjoner: Bolig, forretningsbygg og industri.
Standard: DIN VDE 0641-21
Icn=25 kA
Product details
Technical specifications
Release characteristicOther
Number of poles1
Rated current25 A
Rated voltage230 V
Rated insulation voltage Ui690 V
Rated switching capacity25 kA
Concurrently switching neutral conductorno
Frequency50 Hz
Overvoltage category4
Pollution degree3
Rated surge voltage invariability6 kV
Mounting methodDIN rail
Degree of protection (IP)IP20
Construction size according to DIN 438803
Product codes
SAPDJX373
El number1634360
Product number1634360
GTIN/EAN4016779838146
Manufacturer part number2CDH781001R0517
Vendor material number2CDH781001R0517
Basic information
Package measurements (L x W x H)92 x 27 x 130 mm
Package volume0.323 l
Package weight0.35 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandABB
Country of OriginBG Bulgaria
Customs tariff code85361000
