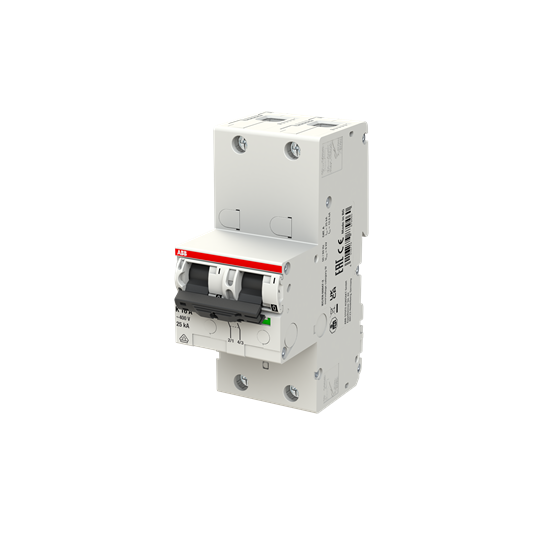

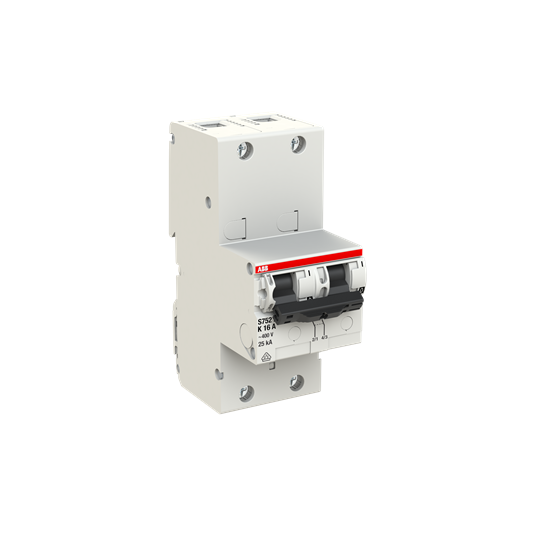

HOVEDSIKRING AUTOMAT S752DR-K16 SEL. IEC
Product number
1634117
S752DR, 2pol, 16A, K-karakteristikk, Selektiv, DIN-skinne montering
Selektivt overbelastningsvern.
Applikasjoner: Bolig, forretningsbygg og industri.
Standard: IEC/EN 60947-2
Icn=25 kA
Product details
Technical specifications
Release characteristicOther
Number of poles2
Rated current16 A
Rated insulation voltage Ui690 V
Rated switching capacity25 kA
Concurrently switching neutral conductorno
Overvoltage category4
Pollution degree3
Mounting methodDIN rail
Degree of protection (IP)IP20
Construction size according to DIN 438803
Product codes
SAPDJT986
El number1634117
Product number1634117
GTIN/EAN4016779879460
Manufacturer part number2CDH782010R0467
Vendor material number2CDH782010R0467
Basic information
Package measurements (L x W x H)96 x 54 x 130 mm
Package volume0.674 l
Package weight0.7 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandABB
Country of OriginBG Bulgaria
Customs tariff code85369090
