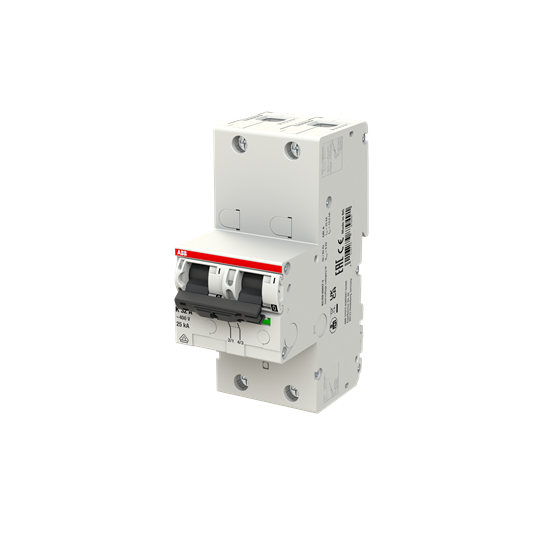

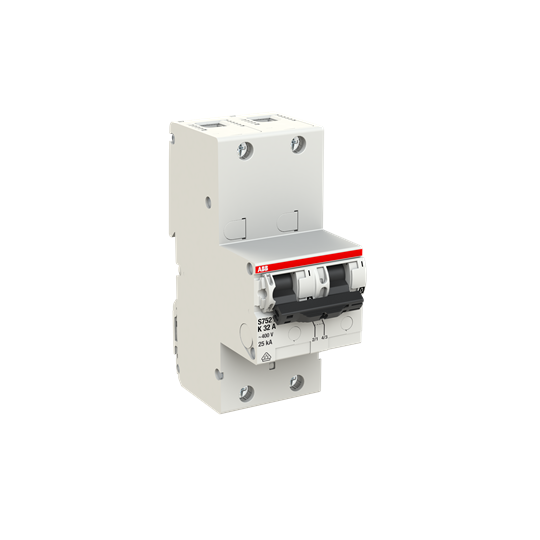

HOVEDSIKRING AUTOMAT S752DR-K32 SEL. IEC
Product number
1634121
S752DR, 2pol, 32A, K-karakteristikk, Selektiv, DIN-skinne montering
Selektivt overbelastningsvern.
Applikasjoner: Bolig, forretningsbygg og industri.
Standard: IEC/EN 60947-2
Icn=25 kA
Product details
Technical specifications
Release characteristicOther
Number of poles2
Rated current32 A
Rated insulation voltage Ui690 V
Rated switching capacity25 kA
Concurrently switching neutral conductorno
Overvoltage category4
Pollution degree3
Mounting methodDIN rail
Degree of protection (IP)IP20
Construction size according to DIN 438803
Product codes
SAPDJT990
El number1634121
Product number1634121
GTIN/EAN4016779879491
Manufacturer part number2CDH782010R0537
Vendor material number2CDH782010R0537
Basic information
Package measurements (L x W x H)96 x 54 x 130 mm
Package volume0.674 l
Package weight0.7 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandABB
Country of OriginBG Bulgaria
Customs tariff code85369090
