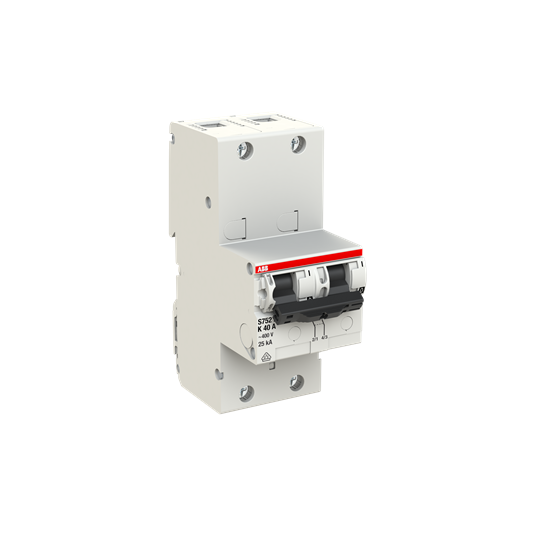

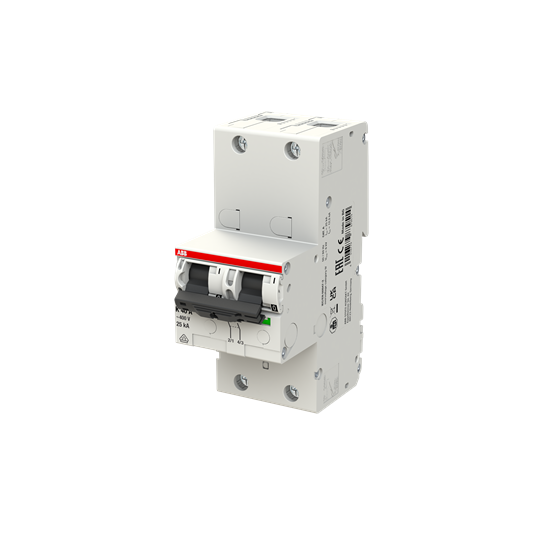

HOVEDSIKRING AUTOMAT S752DR-K40 SEL. IEC
Product number
1634123
S752DR, 2pol, 40A, K-karakteristikk, Selektiv, DIN-skinne montering
Selektivt overbelastningsvern.
Applikasjoner: Bolig, forretningsbygg og industri.
Standard: IEC/EN 60947-2
Icn=25 kA
Product details
Technical specifications
Release characteristicOther
Number of poles2
Rated current40 A
Rated insulation voltage Ui690 V
Rated switching capacity25 kA
Concurrently switching neutral conductorno
Overvoltage category4
Pollution degree3
Mounting methodDIN rail
Degree of protection (IP)IP20
Construction size according to DIN 438803
Product codes
SAPDJT992
El number1634123
Product number1634123
GTIN/EAN4016779879514
Manufacturer part number2CDH782010R0557
Vendor material number2CDH782010R0557
Basic information
Package measurements (L x W x H)96 x 54 x 130 mm
Package volume0.674 l
Package weight0.7 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandABB
Country of OriginBG Bulgaria
Customs tariff code85369090
