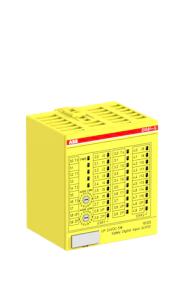

I/O CARD DI581-S
Product number
4541372
I/O-S,SIL3/2 DI:8/16
Digital input module. Safety. 16SDI, 16SDI SIL2/ 8SDI SIL3, 24VDC, 1-wire, 8 pulse output (DI581-S)
Product details
Technical specifications
Voltage type (supply voltage)DC
Number of digital inputs16
Digital inputs configurableyes
Digital outputs configurableno
Input current at signal 17 mA
Permitted voltage at input0 - 30 V
Type of voltage (input voltage)DC
Short-circuit protection, outputs availableno
Redundancyno
Type of electric connectionOther
Time delay at signal change1 - 500 ms
Suitable for safety functionsyes
SIL according to IEC 615082
Performance level according to EN ISO 13849-1None
Appendant operation agent (Ex ia)no
Product codes
SAPCYQ798
El number4541372
Product number4541372
GTIN/EAN4016779681797
Manufacturer part number1SAP284000R0001
Vendor material number1SAP284000R0001
Basic information
Package measurements (L x W x H)62 x 67.5 x 76 mm
Package volume0.318 l
Package weight0.122 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandABB
Country of OriginDE Germany
Customs tariff code85389000
