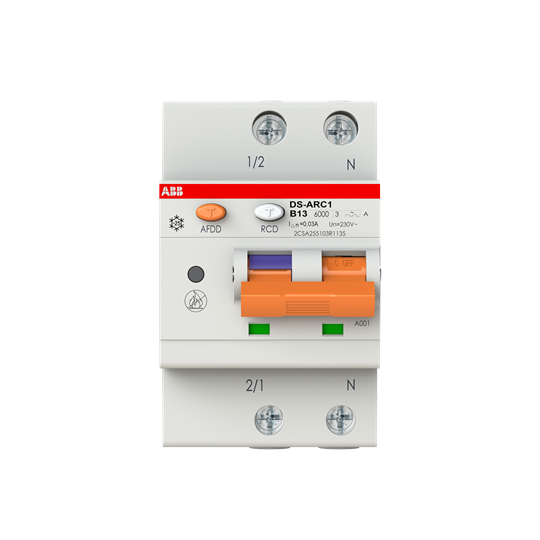

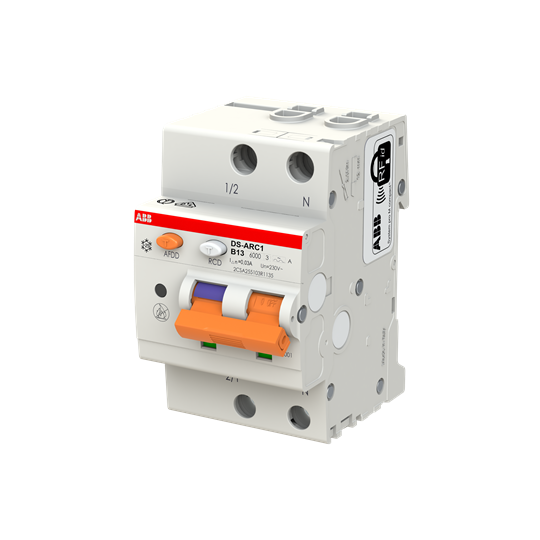

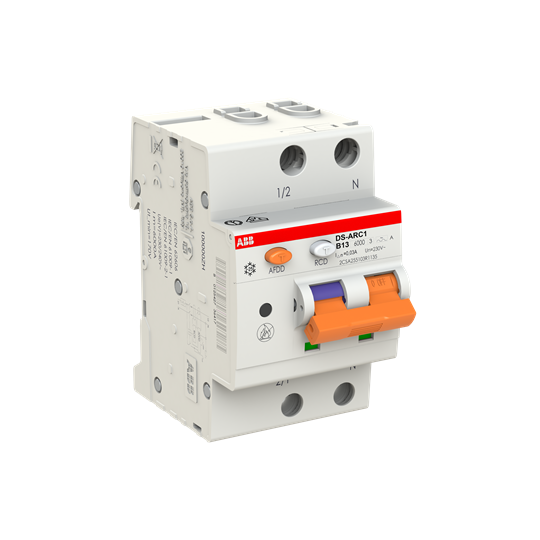

JORDFEIL LYSBUEVERN DS-ARC1 B13 A30
Product number
1683256
DS-ARC1 B13 A30, Jordfeilautomat m Lysbuevakt, B kar, 3 mod, 1+N, 13A, 6kA
DS-ARC1 serie, 1+N (AFDD) B-karakteristrikk. Funksjon: beskyttelse av sluttbruker enfasekretser mot kortslutningsstrømmer, overbelastning, jordbuefeil, parallelle lysbuefeil og seriebuefeil. Bruksområde: bolig, kommersiell. Standard: IEC 62606; EN 62606; IEC 60898-1; EN 60898-1. Icn = 6 000 A
Product details
Technical specifications
Number of poles (total)2
Number of protected poles1
Rated voltage230 V
Rated current13 A
Rated fault current0.03 A
Leakage current typeA
Current limiting class3
Rated short-circuit breaking capacity according to EN 610096 kA
Rated short-circuit breaking capacity according to IEC 60947-27.5 kA
Release characteristicB
Concurrently switching neutral conductoryes
Overvoltage category3
Pollution degree2
Ambient temperature during operating-40 - 70 °C
Width in number of modular spacings3
Product codes
SAPDJU042
El number1683256
Product number1683256
GTIN/EAN8012542736417
Manufacturer part number2CSA255103R1135
Vendor material number2CSA255103R1135
Basic information
Package measurements (L x W x H)69 x 52.5 x 85 mm
Package volume0.308 l
Package weight0.24 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandABB
Country of OriginIT Italy
Customs tariff code85363000
