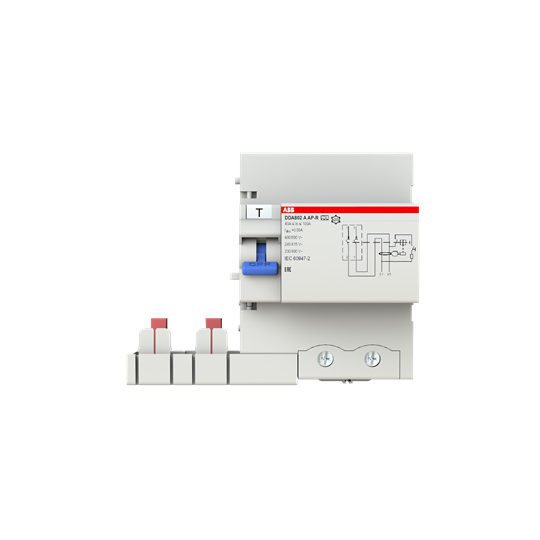

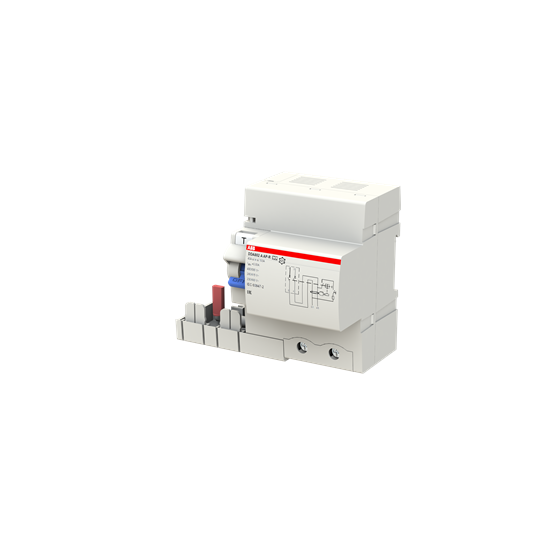

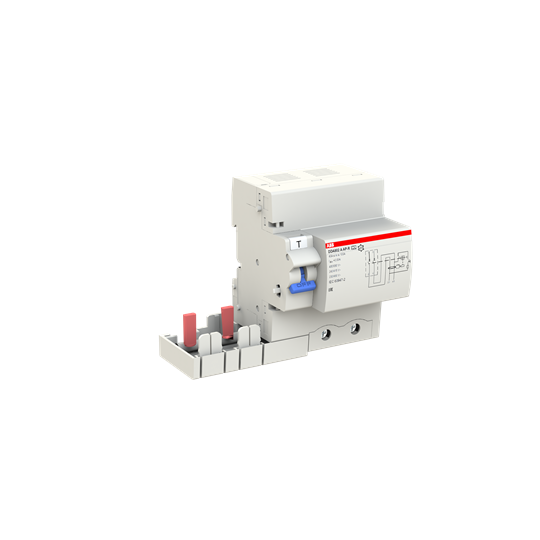

JORDFEILBLOKK DDA802 A 100A/30mA/AP-R
Product number
1627052
DDA802, 2 pol, Type AP-R (korttidsforsinket), 100A, 30mA, 690V
DDA 800 A AP-R
Funksjon: Jordfeilblokk for montering sammen med automat S 800S/N opp til 100A. Beskyttelse ved sinusformet jordfeilstrøm i tillegg til pulserende DC jordfeilstrømmer. AP-R tilbyr det optimale kompromiss mellom beskyttelse, og beskyttelse mot uønskede utkoblinger. Beskytter mot indirekte kontakt og mot direkte kontakt (ved I?n=30 mA).
Applikasjoner: Marine og industri.
Standard: IEC/EN 60947-2 (B)
Product details
Technical specifications
Nominal voltage230 - 400 V
Nominal current100 A
Rated fault current adjustableno
Rated fault current0.03 - 0.03 A
Delay adjustableno
Number of poles2
Leakage current typeA
Surge current capacity3 kA
Frequency50/60 Hz
Rated insulation voltage Ui690 V
Rated impulse withstand voltage Uimp6 kV
Power loss7 W
Connectable conductor cross section solid-core6 - 50 mm²
Connectable conductor cross section multi-wired6 - 70 mm²
Anti-nuisance tripping versionyes
Product codes
SAPDJX139
El number1627052
Product number1627052
GTIN/EAN8012542544630
Manufacturer part number2CSB802401R1000
Vendor material number2CSB802401R1000
Basic information
Package measurements (L x W x H)82.3 x 81 x 108.2 mm
Package volume0.721 l
Package weight0.3 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandABB
Country of OriginIT Italy
Customs tariff code85363000
