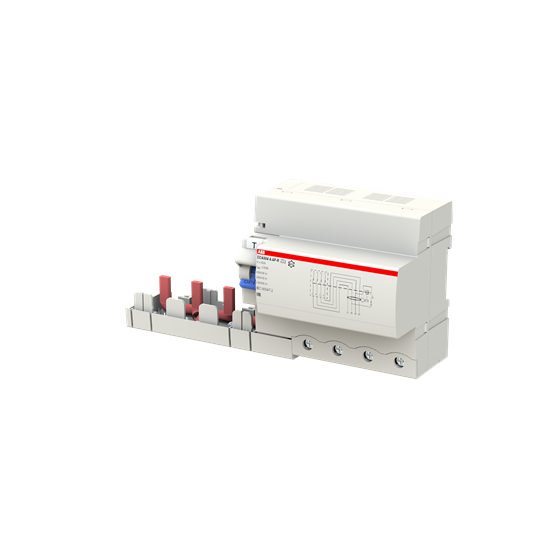

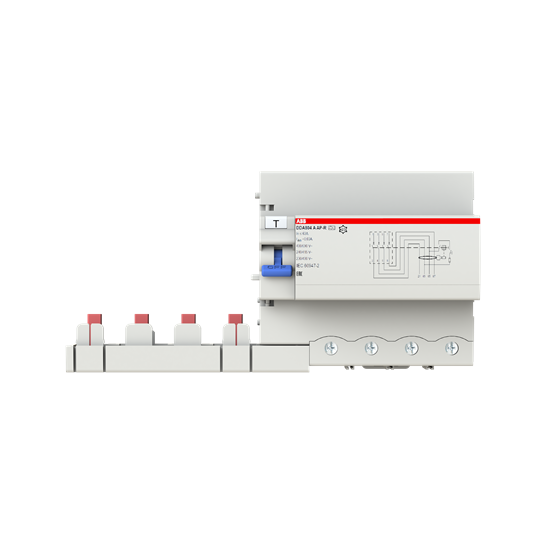

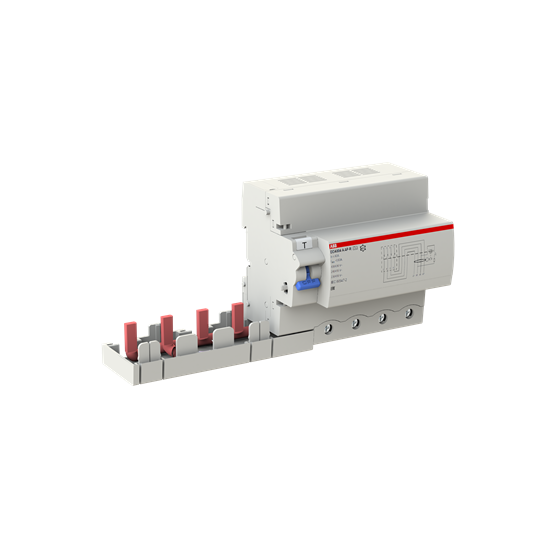

JORDFEILBLOKK DDA804 A 63A/30mA AP-R
Product number
1627055
DDA804, 4 pol, Type AP-R (korttidsforsinket), 63A, 30mA, 690V
DDA 800 A AP-R
Funksjon: Jordfeilblokk for montering sammen med automat S 800S/N opp til 100A. Beskyttelse ved sinusformet jordfeilstrøm i tillegg til pulserende DC jordfeilstrømmer. AP-R tilbyr det optimale kompromiss mellom beskyttelse, og beskyttelse mot uønskede utkoblinger. Beskytter mot indirekte kontakt og mot direkte kontakt (ved I?n=30 mA).
Applikasjoner: Marine og industri.
Standard: IEC/EN 60947-2 (B)
Product details
Technical specifications
Nominal voltage230 - 690 V
Nominal current63 A
Rated fault current adjustableno
Rated fault current0.03 - 0.03 A
Delay adjustableno
Number of poles4
Leakage current typeA
Surge current capacity3 kA
Frequency50/60 Hz
Rated insulation voltage Ui690 V
Rated impulse withstand voltage Uimp6 kV
Power loss13.5 W
Connectable conductor cross section solid-core6 - 50 mm²
Connectable conductor cross section multi-wired6 - 70 mm²
Anti-nuisance tripping versionyes
Product codes
SAPDJX142
El number1627055
Product number1627055
GTIN/EAN8012542927709
Manufacturer part number2CSB804401R1630
Vendor material number2CSB804401R1630
Basic information
Package measurements (L x W x H)82.3 x 117 x 108.2 mm
Package volume1.042 l
Package weight0.46 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandABB
Country of OriginIT Italy
Customs tariff code85363000
