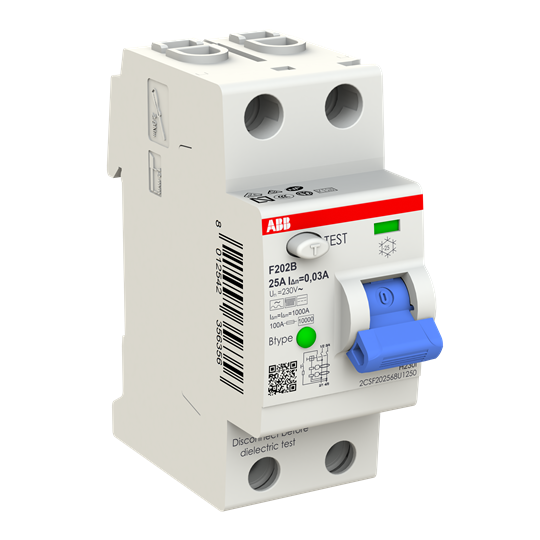

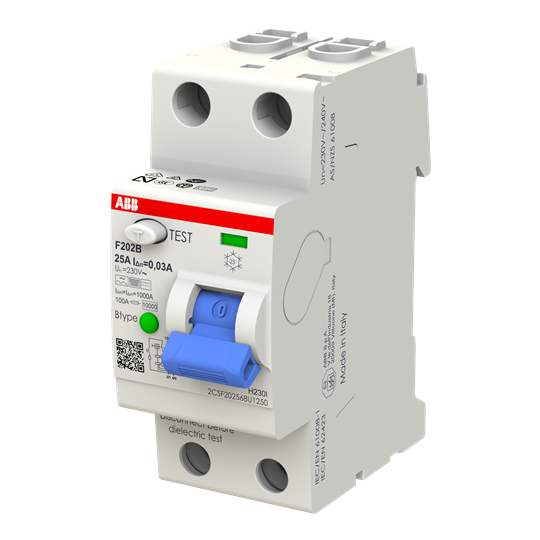

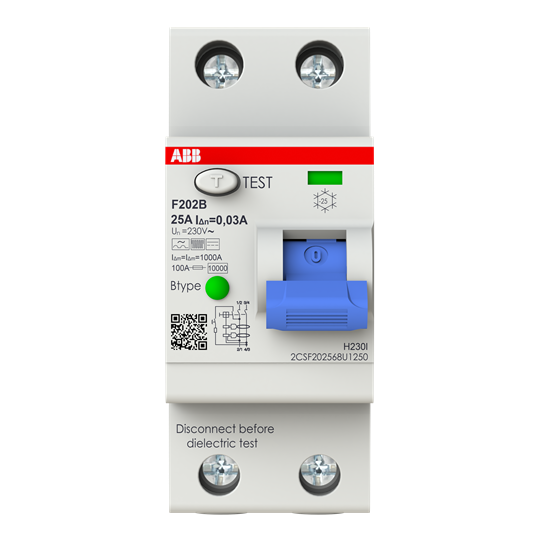

JORDFEILBRYTER F202B 25A/30mA BULK
Product number
1672388
JORDFEILBRYTER F202, 2 pol, Type B, 25 A, 30mA, BULK
F 200 B for ren DC jordfeilstrøm
Funksjon: Beskytter mot pulserende DC jordfeilstrømmer og AC jordfeilstrøm i tillegg til ren DC jordfeilstrømmer; beskytter mot indirekte kontakt og mot direkte kontakt (ved In=30mA). Overvåker og isolerer resistive og induktive laster.
Applikasjon: Industri.
Standard: IEC/EN 61008, EN 62423
Merket i henhold til EN 62428
Product details
Technical specifications
Number of poles2
Rated voltage230 V
Rated current25 A
Rated insulation voltage Ui440 V
Rated impulse withstand voltage Uimp4 kV
Power loss1.58 W
Mounting methodOther
Leakage current typeB
Selective protectionno
Short-time delayed trippingno
Surge current capacity3 kA
Voltage typeAC
With interlocking deviceno
FrequencyOther
Additional equipment possibleyes
Product codes
SAPDJU115
El number1672388
Product number1672388
GTIN/EAN8012542356356
Manufacturer part number2CSF202568U1250
Vendor material number2CSF202568U1250
Basic information
Package measurements (L x W x H)69 x 35 x 85 mm
Package volume0.205 l
Package weight0.22 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandABB
Country of OriginIT Italy
Customs tariff code85363000
