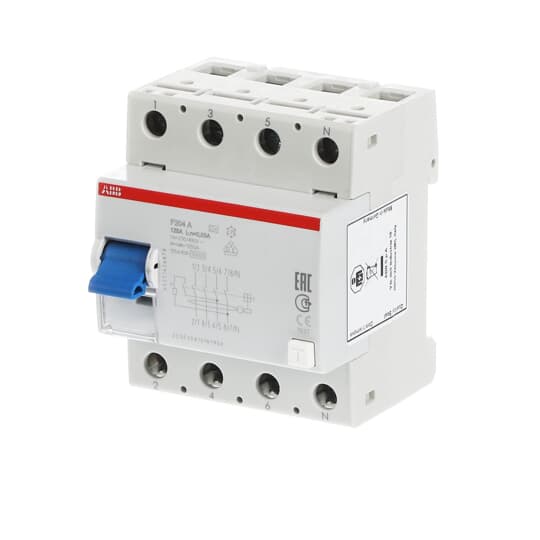

JORDFEILBRYTER F204 A 125A/30mA
Product number
1630585
F204, 4 pol, Type A, 125A, 30mA
F 200 A
Funksjon: Beskytter mot pulserende DC jordfeilstrømmer i tillegg til AC jordfeilstrømmer. Beskytter mot indirekte kontakt og mot direkte kontakt (ved Idn=30mA). Overvåker og isolerer resistive og induktive laster.
Applikasjoner: Bolig, forretningsbygg og industri.
Standard: IEC/EN 61008
Merket i henhold til EN 61008
Product details
Technical specifications
Number of poles4
Rated voltage400 V
Rated current125 A
Rated fault current0.03 A
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Mounting methodDIN rail
Leakage current typeOther
Selective protectionno
Short-time delayed trippingno
Short-circuit breaking capacity (Icw)1 kA
Surge current capacity0.25 kA
With interlocking deviceyes
Frequency50 Hz
Additional equipment possibleyes
Product codes
SAPDCU437
El number1630585
Product number1630585
GTIN/EAN8012542941903
Manufacturer part number2CSF204101R1950
Vendor material number2CSF204101R1950
Basic information
Package measurements (L x W x H)85 x 72 x 69 mm
Package volume0.422 l
Package weight0.5 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandABB
Country of OriginIT Italy
Customs tariff code85363000
