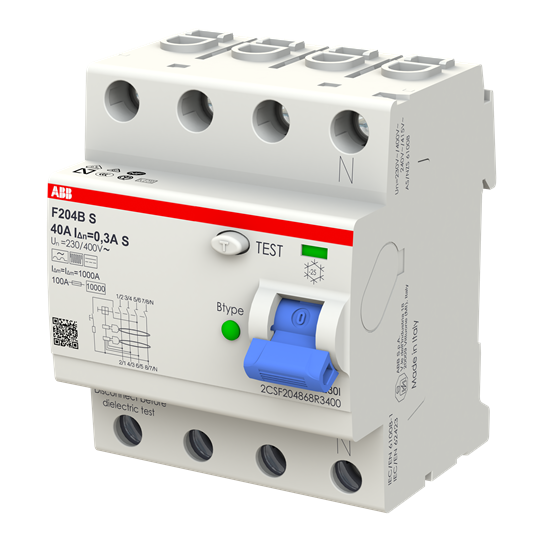

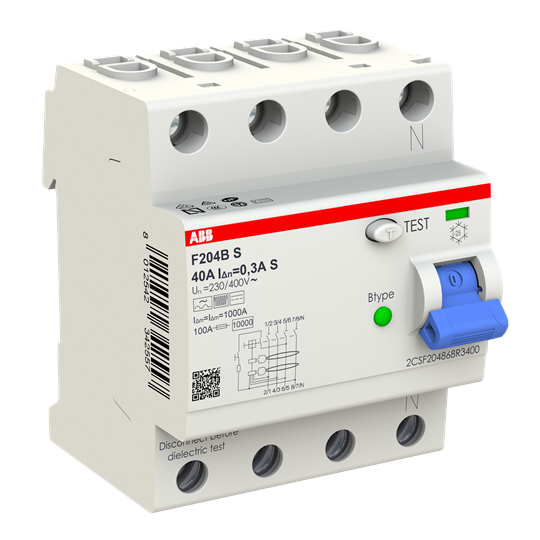

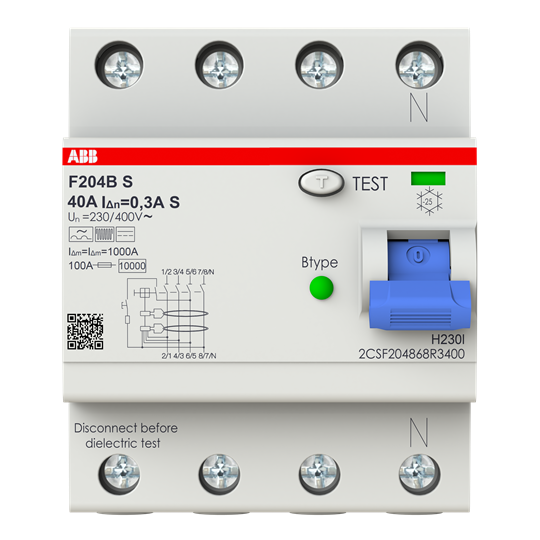

JORDFEILBRYTER F204B S-40/300mA
Product number
1672376
JORDFEILBRYTER F204, 4 pol, Type B, Selektiv, 40 A, 300mA
F 200 B for ren DC jordfeilstrøm
Funksjon: Beskytter mot pulserende DC jordfeilstrømmer og AC jordfeilstrøm i tillegg til ren DC jordfeilstrømmer; beskytter mot indirekte kontakt og mot direkte kontakt (ved In=30mA). Overvåker og isolerer resistive og induktive laster.
Applikasjon: Industri.
Standard: IEC/EN 61008, EN 62423
Merket i henhold til EN 62423
Product details
Technical specifications
Number of poles4
Rated voltage400 V
Rated current40 A
Rated insulation voltage Ui440 V
Rated impulse withstand voltage Uimp4 kV
Power loss6.95 W
Mounting methodDIN rail
Leakage current typeB
Selective protectionyes
Short-time delayed trippingno
Surge current capacity3 kA
Voltage typeAC
With interlocking deviceno
FrequencyOther
Additional equipment possibleyes
Product codes
SAPDCU461
El number1672376
Product number1672376
GTIN/EAN8012542342557
Manufacturer part number2CSF204868R3400
Vendor material number2CSF204868R3400
Basic information
Package measurements (L x W x H)85 x 70 x 69 mm
Package volume0.411 l
Package weight0.38 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandABB
Country of OriginIT Italy
Customs tariff code85363000
