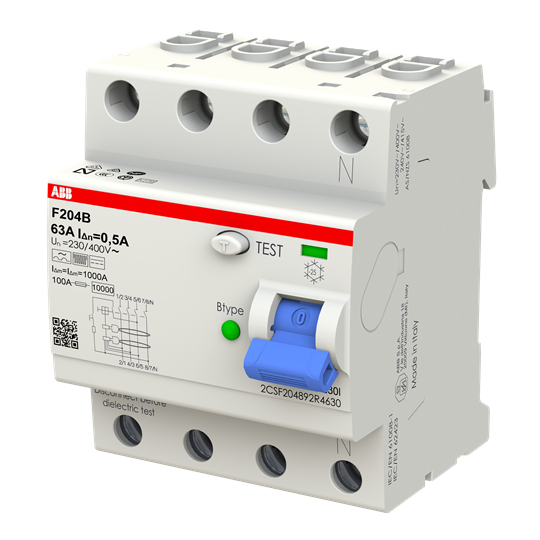

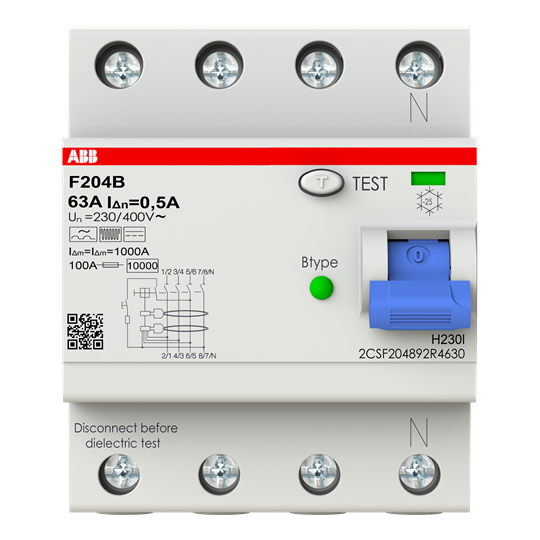

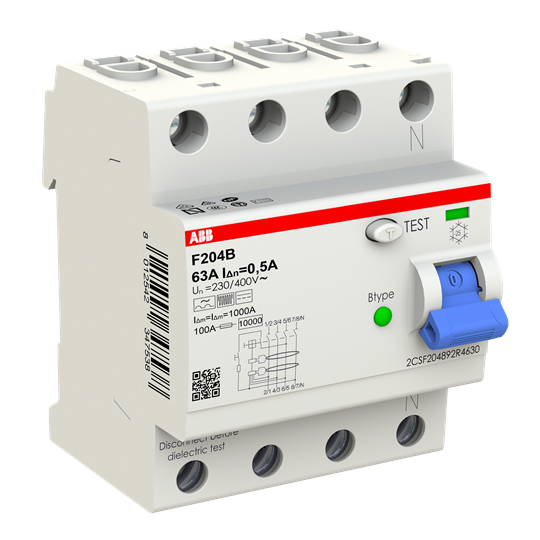

JORDFEILBRYTER F204B S 63A/500mA
Product number
1683085
JF.BR.F204, 4 pol, Type B Selektiv, 63 A, 500mA
F 200 B for ren DC jordfeilstrøm
Funksjon: Beskytter mot pulserende DC jordfeilstrømmer og AC jordfeilstrøm i tillegg til ren DC jordfeilstrømmer; beskytter mot indirekte kontakt og mot direkte kontakt (ved In=30mA). Overvåker og isolerer resistive og induktive laster.
Applikasjon: Industri.
Standard: IEC/EN 61008, EN 62423
Merket i henhold til EN 62423
Product details
Technical specifications
Number of poles4
Rated voltage400 V
Rated current63 A
Rated fault current0.5 A
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Power loss12.5 W
Mounting methodDIN rail
Leakage current typeB
Selective protectionyes
Short-time delayed trippingyes
Short-circuit breaking capacity (Icw)1 kA
Surge current capacity5 kA
Voltage typeAC
With interlocking deviceyes
Product codes
SAPDCU464
El number1683085
Product number1683085
GTIN/EAN8012542347538
Manufacturer part number2CSF204892R4630
Vendor material number2CSF204892R4630
Basic information
Package measurements (L x W x H)85 x 72 x 69 mm
Package volume0.422 l
Package weight0.38 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandABB
Country of OriginIT Italy
Customs tariff code85363000
