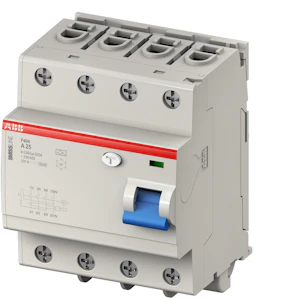

JORDFEILBRYTER F404 A 63/30mA
Product number
1623574
F404, 4 pol, Type A, 63A, 30mA, Smissline
F 400 A
Funksjon: Beskytter mot pulserende DC jordfeilstrømmer i tillegg til AC jordfeilstrømmer. Beskytter mot indirekte kontakt og mot direkte kontakt (ved Idn=30mA). Overvåker og isolerer resistive og induktive laster.
Applikasjoner: Bolig, forretningsbygg og industri.
Standard: IEC/EN 61008
Product details
Technical specifications
Number of poles4
Rated voltage400 V
Rated current63 A
Rated fault current0.03 A
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Power loss17.9 W
Mounting methodOther
Leakage current typeA
Selective protectionno
Short-time delayed trippingno
Short-circuit breaking capacity (Icw)1 kA
Surge current capacity0.25 kA
Voltage typeAC
With interlocking deviceyes
Product codes
SAPDCR770
El number1623574
Product number1623574
GTIN/EAN7612270104291
Manufacturer part number2CCF544110E0630
Vendor material number2CCF544110E0630
Basic information
Package measurements (L x W x H)67 x 91 x 97 mm
Package volume0.591 l
Package weight0.43 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandABB
Country of OriginIT Italy
Customs tariff code85362000
