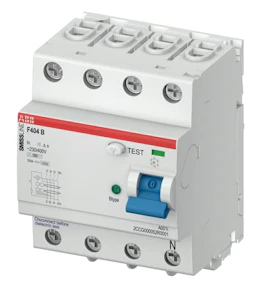

JORDFEILBRYTER F404 B 25A/300mA
Product number
1672397
F404, 4 pol, Type B, 25A, 300mA, Smissline
F 400 A. Funksjon: Beskytter mot pulserende DC jordfeilstrømmer i tillegg til AC jordfeilstrømmer. Beskytter mot indirekte kontakt og mot direkte kontakt (ved Idn=30mA). Overvåker og isolerer resistive og induktive laster.
Applikasjoner: Bolig, forretningsbygg og industri
Standard: IEC/EN 61008
Product details
Technical specifications
Number of poles4
Rated voltage400 V
Rated current25 A
Rated fault current300 A
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Power loss3.9 W
Mounting methodOther
Leakage current typeB
Selective protectionno
Short-time delayed trippingyes
Surge current capacity3 kA
Voltage typeAC
With interlocking deviceyes
FrequencyOther
Product codes
SAPDJU113
El number1672397
Product number1672397
GTIN/EAN7612271506315
Manufacturer part number2CCG000055R0001
Vendor material number2CCG000055R0001
Basic information
Package measurements (L x W x H)97 x 70 x 67 mm
Package volume0.455 l
Package weight0.435 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandABB
Country of OriginCH Switzerland
Customs tariff code85362000
