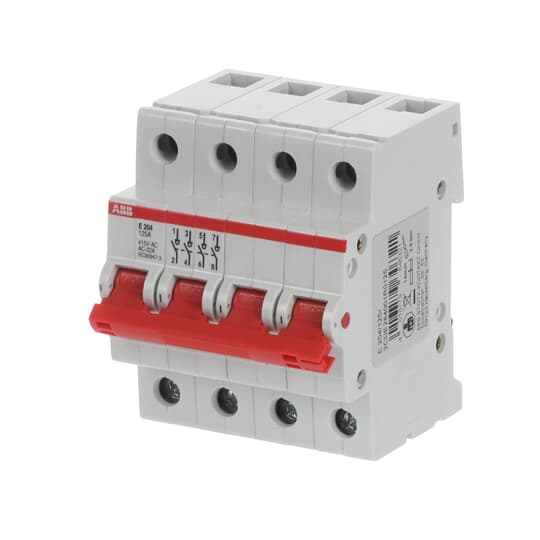

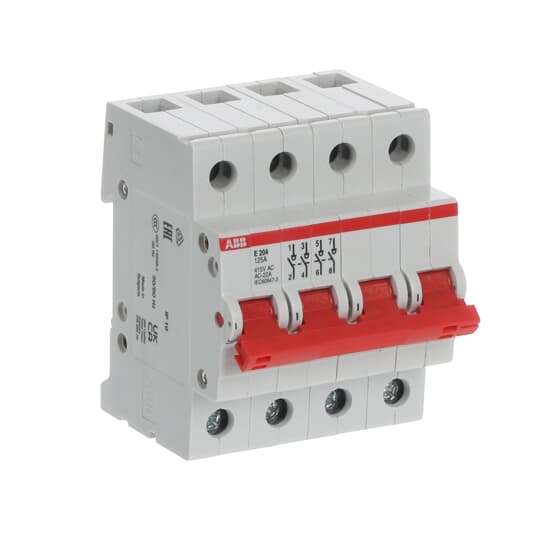

MODULÆR LASTBRYTER E204/125R
Product number
1424335
E204/125r, 4 pol, 125A, Rød
Isolator for tavlesystemer med DIN-skinne.
En modul per pol.
Hurtig bytte uten behov for fjerning av samleskinne.
Opp til 3 stk. hjelpekontakter S2C-H6R kan benyttes.
Merkesystem ILS kan benyttes.
Kan låses for å hindre uautorisert bruk.
Farge: Rød.
Godkjenninger: VDE, CCC.
Product details
Technical specifications
Switching functionOff switch
Number of contacts as normally open contact4
Number of contacts as normally closed contact0
Number of contacts as change-over contact0
Number of poles4
Rated current125 A
Rated voltage400 V
Min. rated voltage12 V
Rated switching capacity25 kA
Short-circuit breaking capacity (Icw)6 kA
Voltage typeAC
With signal lampno
Colour calotteGrey
Width in number of modular spacings4
Built-in depth70 mm
Product codes
SAPHDM260
El number1424335
Product number1424335
GTIN/EAN4016779646321
Manufacturer part number2CDE284001R0125
Vendor material number2CDE284001R0125
Basic information
Package measurements (L x W x H)80 x 70 x 60 mm
Package volume0.336 l
Package weight0.164 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandABB
Country of OriginBG Bulgaria
Customs tariff code85365000
