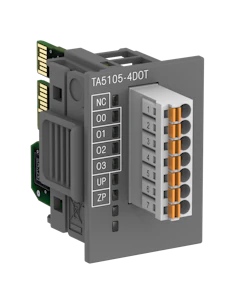

OPTION BOARD TA5105-4DOT
Product number
4541279
eCo Op.Board,DO:4
Digital output option board. 4 DO: 24VDC 0.5A. Spring terminals included (TA5105-4DOT)
Product details
Technical specifications
Supply voltage DC20.4 - 28.8 V
Number of digital outputs4
Digital inputs configurableno
Digital outputs configurableno
Type of digital outputTransistor
Output current0.5 A
Permitted voltage at output20.4 - 28.8 V
Type of output voltageDC
Short-circuit protection, outputs availableno
Redundancyno
Type of electric connectionOther
Suitable for safety functionsno
SIL according to IEC 61508None
Performance level according to EN ISO 13849-1None
Appendant operation agent (Ex ia)no
Product codes
SAPCYQ772
El number4541279
Product number4541279
GTIN/EAN4013614551758
Manufacturer part number1SAP187000R0002
Vendor material number1SAP187000R0002
Basic information
Package measurements (L x W x H)54.2 x 28.5 x 42 mm
Package volume0.065 l
Package weight0.016 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandABB
Country of OriginCN China
Customs tariff code85389000
