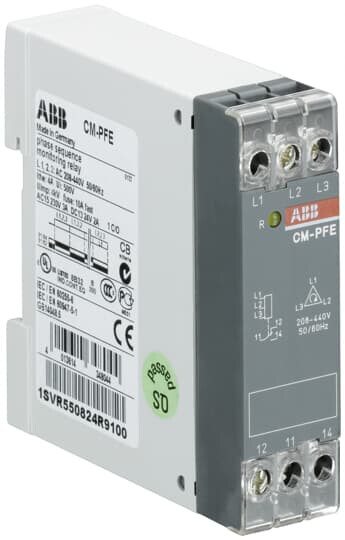

PHASE SEQUENCE RELAY CM-PFE
Product number
4187172
ÖVERVAKN RELÄ CM-PFE FASSEKV
Phase sequence relay CM-PFE, width 22.5mm, measuring range L1-L2-L3=208-440VAC, powered by measuring circuit, 1 c/o (closed circuit principle)
Product details
Technical specifications
Type of electric connectionScrew connection
With detachable clampsno
External power supply requiredno
Voltage type (supply voltage)AC
Phase sequence monitoringyes
Phase failure detectionyes
Function under voltage detectionno
Function overvoltage detectionno
Phase imbalance monitoringno
Voltage measuring range208-440 V
Min. adjustable delay-on energization time0.5 s
Max. permitted delay-on energization time0.5 s
Min. adjustable off-delay time0.5 s
Max. permitted off-delay time0.5 s
Number of contacts as normally closed contact0
Product codes
SAPGAS227
El number4187172
Product number4187172
GTIN/EAN4013614348044
Manufacturer part number1SVR550824R9100
Vendor material number1SVR550824R9100
Basic information
Package measurements (L x W x H)78 x 22 x 78 mm
Package volume0.134 l
Package weight0.1 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC39122325
BrandABB
Country of OriginBG Bulgaria
Customs tariff code85364900
