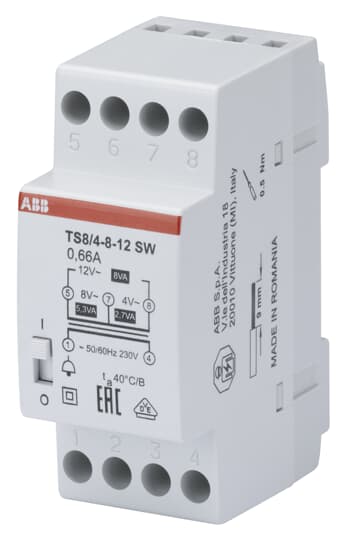

RINGETRAFO M. VERN TS 8/4-8-12SW
Product number
5469073
TS 8/4-8-12 sw, tåler kortslutning, med bryter.
TS transformatorer har en termisk beskyttelsesenhet integrert i den sekundærsiden som gjør dem motstandsdyktige mot kortslutningsstrømmer (ikke stående kortslutning).
Disse ringetrafoene med lav sekundærspenning er beregnet til f.eks. dørklokker (ikke kontinuerlig bruk).
Product details
Technical specifications
Primary voltage230 V
Secondary voltage 14 V
Secondary voltage 26 V
Secondary voltage 38 V
Secondary amperage 12 A
Secondary amperage 21.33 A
Secondary amperage 31 A
Max. output power8 W
Max. output current2 A
Max. power loss4 W
Type of transformerStandard bell ringing transformer
Surface mountingno
Flush-mounted installationno
Suitable for distribution boardyes
Length65 mm
Product codes
SAPDJX884
El number5469073
Product number5469073
GTIN/EAN8012542368700
Manufacturer part number2CSM081022R0811
Vendor material number2CSM081022R0811
Basic information
Package measurements (L x W x H)65 x 35 x 85 mm
Package volume0.193 l
Package weight0.35 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandABB
Country of OriginRO Romania
Customs tariff code85043100
