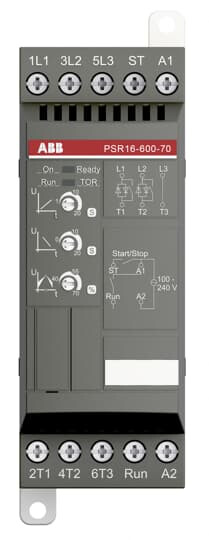

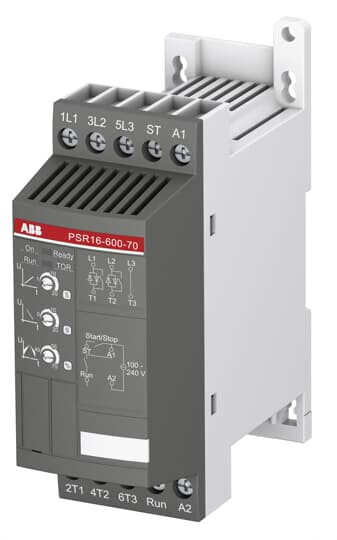

SOFT STARTER PSR16 7,5KW/400V 100-240VAC
Product number
4189781
MJUKSTARTARE#PSR16-600-70
Softstarter PSR16-600-70 for max 600V main voltage and 100-240V 50/60Hz control supply voltage
Product details
Technical specifications
Rated operation current Ie at 40 °C Tu16 A
Rated operating voltage Ue208 ... 600 V
Rated power three-phase motor, inline, at 230 V4 kW
Rated power three-phase motor, inline, at 400 V7.5 kW
FunctionSingle direction
Internal bypasstrue
With displayfalse
Torque controlfalse
Rated surrounding temperature without derating40 °C
Rated control supply voltage AC 50 Hz100 ... 240 V
Rated control supply voltage AC 60 Hz100 ... 240 V
Rated control supply voltage DC# V
Voltage type for actuatingAC
Integrated motor overload protectionfalse
Release classAdjustable
Product codes
SAPAEE899
PLC4189781
STK4189781
GTIN/EAN7320500338261
Manufacturer part numberPSR16-600-70
Vendor material number1SFA896107R7000
Basic information
Package measurements (L x W x H)160 x 125 x 50 mm
Package volume1 l
Package weight0.42 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39121007
BrandABB
