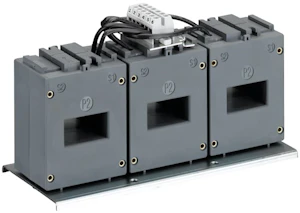

STRØMTRAFO CT5L850R/4 F.UMC100 500-850A
Product number
4552515
3-fase Strømtransformator CT5L850R/4, nominell merkestrøm 500-850A, primærstrøm 850A / sek. strøm 4A
Eksterne 3-fase strømtransformatorer for motorkontroller UMC100.3
Product details
Technical specifications
Model3-phase current converter set
Rated primary current850 A
Rated secondary current4 A
Overcurrent limiting factorFS 10
With contact protectionno
Height opening135 - 135 mm
Width opening245 - 245 mm
Snap mountingno
With copper railyes
Secondary connectionScrew connection
Number of primary inputs0
Product codes
SAPDJX125
El number4552515
Product number4552515
GTIN/EAN4013614482144
Manufacturer part number1SAJ929501R0850
Vendor material number1SAJ929501R0850
Basic information
Package measurements (L x W x H)100 x 245 x 135 mm
Package volume3.308 l
Package weight1.9 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandABB
Country of OriginCN China
Customs tariff code85044010
