SURFACE MOUNTED ENCLOSURE SAGA 1-GANG, 54/80MM, WHITE
Product number
1416448

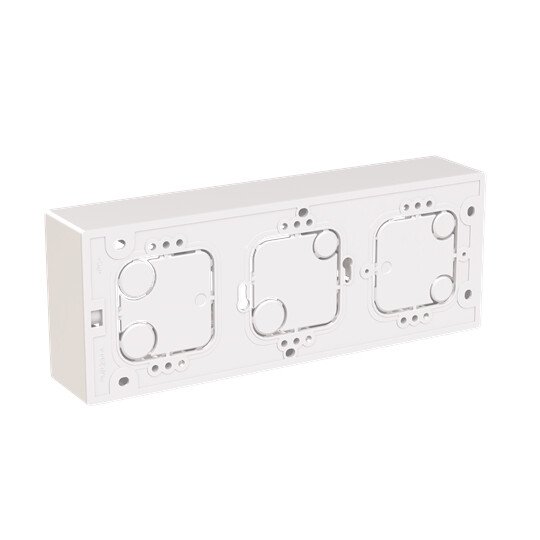

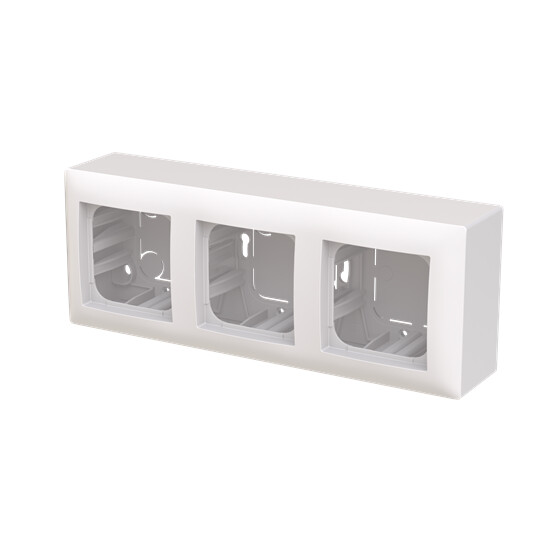

SAGA™ 85mm 3-hull kappe høyde 53mm 1723S85H53-916
3-hulls 85mm kappe for 3 enkle innsatser med installasjonsdybde på maks 26 mm. Høy kappe med 53 mm høyde. Komplett med underdel og ramme. Produsert av bærekraftig materiale, bio-sirkulært materiale benyttet i underdel og ramme.
Product details
Technical specifications
Assembly arrangementSurface mounted frame
Suitable for modular domestic switching devicesno
Number of units3
Mounting directionHorizontal and vertical
ShapeRectangular
MaterialPlastic
Material qualityThermoplastic
Halogen freeno
Surface protectionUntreated
Surface finishingGlossy
ColourWhite
RAL-number (similar)9003
Transparentno
With cover frameno
With duct entryno
Product codes
SAPDDG867
El number1416448
Product number1416448
GTIN/EAN6438199012087
Manufacturer part number1723S85H53-916
Vendor material number2TKA00005244
Basic information
Package measurements (L x W x H)227 x 85 x 53 mm
Package volume1.023 l
Package weight0.204 kg
Base uniteach
Package units1 / 25 / 800
Usage quantity–
UNSPSC39121304
BrandABB
Country of OriginEE Estonia
Customs tariff code85389000
Sustainability info
Documents (1)
Environmental declaration
