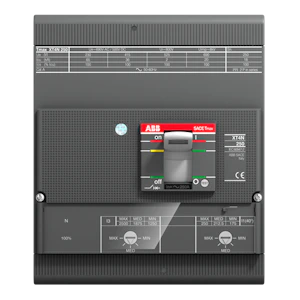

XT4N 160 TMA 125-1250 4P F F 1SDA068107R1
Product number
4380087
Tmax XT XT4N kompaktbryter med termomagnetisk vern og nominell strøm på 125A i 4pol utførelse. Bryteevne (N) gir Icu 36kA@415V/10kA@690V. Vernet er stillbar termisk i område 0,7-1xIn og kortsluttning i område 5-10xIn. Bryteren leveres for fast montering og har som standard frontilkobling på hovedklemmer.
Product details
Technical specifications
Rated permanent current Iu160 A
Rated voltage690 - 690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz36 kA
Overload release current setting87.5 - 125 A
Adjustment range undelayed short-circuit release625 - 1250 A
Power loss7.44 W
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionno
Type of electrical connection of main circuitBolt connection
Suitable for DIN rail (top hat rail) mountingno
DIN rail (top hat rail) mounting optionalno
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
With switched-off indicatorno
Product codes
SAPDBJ983
El number4380087
Product number4380087
GTIN/EAN8015644013981
Manufacturer part number1SDA068107R1
Vendor material number1SDA068107R1
Basic information
Package measurements (L x W x H)82.5 x 140 x 160 mm
Package volume1.848 l
Package weight3.5 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39122330
BrandABB
Country of OriginIT Italy
Customs tariff code85362000
