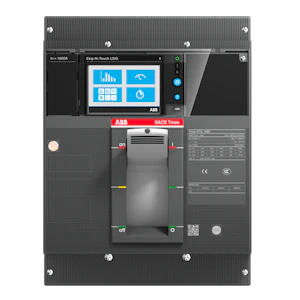

XT7H 1600 Ekip Touch Meas.LSI 1600 3p FF
Product number
4380670
XT7, H-70kA@415V, In=1600, 3 pol, EL, Ekip Touch Measuring LSI, Un=690 volt AC, F. Eff. Br
Tmax XT - XT7H med Elektroniske Touch-vern 3Pol forberedt for måling og kommunikasjon
Product details
Technical specifications
Rated permanent current Iu1600 A
Rated voltage690 - 690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz70 kA
Overload release current setting640 - 1600 A
Adjustment range short-term delayed short-circuit release960 - 16000 A
Adjustment range undelayed short-circuit release2400 - 24000 A
Power loss94 W
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionno
Type of electrical connection of main circuitBolt connection
Suitable for DIN rail (top hat rail) mountingno
DIN rail (top hat rail) mounting optionalno
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Product codes
SAPDJV810
El number4380670
Product number4380670
GTIN/EAN8056221009676
Manufacturer part number1SDA100913R1
Vendor material number1SDA100913R1
Basic information
Package measurements (L x W x H)166 x 210 x 268 mm
Package volume9.342 l
Package weight9.7 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandABB
Country of OriginIT Italy
Customs tariff code85362000
