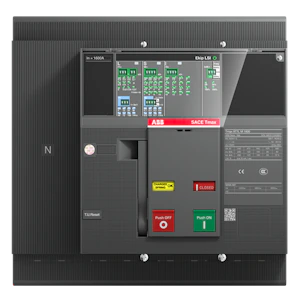

XT7H M 1250 Ekip G Dip LS/I In1250 4p FF
Product number
4380919
XT7, Motor, H-70kA@415V, In=1250, 4 pol, EL, Ekip G-LS/I, Un=690 volt AC, F. Eff. Br
XT7H M med elektroniske vern Ekip G-LS/I, 4P - Justerbart for kortsluttning og overlast med tidsforsinkelse
Product details
Technical specifications
Rated permanent current Iu1250 A
Rated voltage690 - 690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz70 kA
Overload release current setting500 - 1250 A
Adjustment range short-term delayed short-circuit release750 - 12500 A
Adjustment range undelayed short-circuit release1250 - 12500 A
Power loss57 W
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionno
Type of electrical connection of main circuitBolt connection
Suitable for DIN rail (top hat rail) mountingno
DIN rail (top hat rail) mounting optionalno
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Product codes
SAPDJW244
El number4380919
Product number4380919
GTIN/EAN8056221017923
Manufacturer part number1SDA101748R1
Vendor material number1SDA101748R1
Basic information
Package measurements (L x W x H)178 x 280 x 268 mm
Package volume13.357 l
Package weight14 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandABB
Country of OriginIT Italy
Customs tariff code85362000
