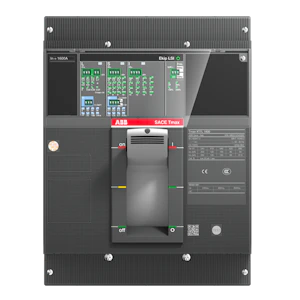

XT7L 1600 Ekip M Dip I In=1600A 3p F F
Product number
4380690
XT7, L-120kA@415V, In=1600, 3 pol, EL, Ekip Dip M Dip I, Un=690 volt AC, F. Eff. Br
XT7L med elektroniske vern Ekip M-I, 3P - Justerbart for kortsluttning med tidsforsinkelse
Product details
Technical specifications
Rated permanent current Iu1600 A
Rated voltage690 - 690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz120 kA
Adjustment range short-term delayed short-circuit release960 - 16000 A
Adjustment range undelayed short-circuit release1600 - 16000 A
Power loss94 W
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionno
Type of electrical connection of main circuitBolt connection
Suitable for DIN rail (top hat rail) mountingno
DIN rail (top hat rail) mounting optionalno
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
With switched-off indicatorno
Product codes
SAPDJV789
El number4380690
Product number4380690
GTIN/EAN8056221010474
Manufacturer part number1SDA100993R1
Vendor material number1SDA100993R1
Basic information
Package measurements (L x W x H)166 x 210 x 268 mm
Package volume9.342 l
Package weight9.7 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandABB
Country of OriginIT Italy
Customs tariff code85362000
